CAN Gateway allows signal separation to the different modules in the car at various speeds of CAN bus. The universality of the CAN filter allows you to program in the following car brands: Mercedes, RENUALT, and BMW. Small size allows mounting CanGateway in EZS module without much interference. Installation is simple and involves soldering only 6 wires. CanGateway was manufactured of high-quality components from best domestic and foreign producers, which guarantees a stable and reliable operation of the filter.

To meet the expectations of our customers, we have prepared a new set of filters CanGateway Easy and CanGateway OBDII which allows to program car models like Mercedes W205, Viano W447, and W222.

CanGateway Smart is new, innovative device that is now available in two equipment variants

and intended for following car models VW Golf 6 & VW Jetta 6

CanGateway Smart is intended for research and development purposes only (off road) – it allows you to perform tests on vehicles under laboratory/testing conditions as well as various vehicle tests and measurements on a chassis dynamometer.

CanGateway Smart device prevents from recording the number of kilometers /mileage of the vehicle while performing tests on a vehicle.

The main advantages of the CanGateway Smart device are easy and quick installation as well as ease of use. High-quality processor (200MHz) ensures minimum power consumption and high performance. Also, there is software update from the microSD card.

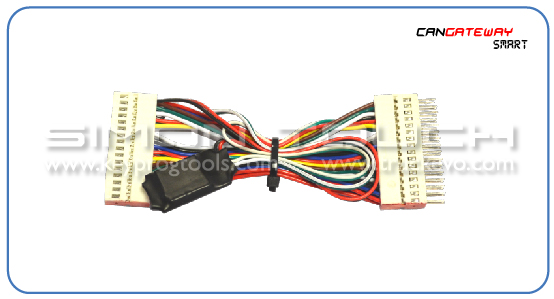

CanGateway Smart comes with dedicated plug and cable to connect to a vehicle and is ready for installation.

CanGateway - Logger is a dual channel device which allows logging Can signals on microSD card in real time. It supports both 29-bit and 11-bit CAN identifiers and ISO 15765 protocols. Additionally, high quality processor (200 MHz) guarantees minimum consumption of power and optimum performance.

Basic functions are

Ability to logging to two CAN-BUS channels in real time with CAN-Gateway function
CAN-BUS signal generating such as Ignition, RPM, speed, switches (for programming, testing ECU’s outside car).
CAN-BUS messages modification, filtering.
CAN-BUS signal converting (for programming, testing ECU’s outside car).

Logger - description

• CAN-Gateway function - converting CAN signals with different speeds.
• CAN-BUS Logging frames from two channels with same or different speeds.
• Filtering CAN-BUS frames according to script.txt file.
• Generating CAN-BUS frames according to script.txt file.
• Modification of CAN-BUS frames according to script.txt file.
• Electronic CAN-BUS termination resistors.
• Power supply - 5 Volts or 12 Volts.
• Software update using microSD card.
• The possibility of modification and configuration via PC tool - CanGateway Manager.
• No loss of any CAN- BUS frames when logging into two channels at the same time, with maximum speed.
• The additional option for a software update in the system/car using DiagProg4 diagnostic tester.



Functions

• Ability to logging to two CAN-BUS channels in real time with
CAN-Gateway function.
• CAN-BUS signal generating such as Ignition, RPM, speed, switches
(for programming, testing ECU’s outside car).
• CAN-BUS messages modification, filtering.
• CAN-BUS signal converting (for programming, testing ECU’s outside car)

CanGateway - Logger includes

CanGateway - Logger device, microSDHC card - 32GB, CD with manual and PC tool CanGateway Manager, dedicated carry case, installation kit, ON/OFF adapter ( adapter allows to restore vehicle installation to factory state).

Conditions of purchase

CanGateway - Logger - 299 euro

CanGateway Smart is new, innovative device that is now available in two equipment variants

Supported cars

• Audi A3
• Seat Leon
• Skoda Octavia3
• VW Golf 7

Installation guide

Plug the  CanGateway Smart in the rear of the odometer (pin 1 has been marked white on CanGatway Smart)

Process

1- Turn on the ignition.
2- Hold “OK” button on the steering wheel for 5 seconds until indicators are switched on.

3- Hold “OK” button on the steering wheel again in order to switch off Cangateway SMART.

Result

Important information

1- Once the device in switching on the speedometer does
not work while driving.
2- The device can be switched on and off while driving.
3- CanGateway Smart operates if indicators are switched
on.

CanGateway Smart is intended for research and development purposes only (off road) – it allows you to perform tests on vehicles under laboratory/testing conditions as well as various vehicle tests and measurements on a chassis dynamometer.

CanGateway Smart device prevents from recording the number of kilometers /mileage of the vehicle while performing tests on a vehicle.

The main advantages of the CanGateway Smart device are easy and quick installation as well as ease of use. High-quality processor (200MHz) ensures minimum power consumption and high performance. Also, there is software update from the microSD card.

CanGateway Smart comes with dedicated plug and cable to connect to a vehicle and is ready for installation.
