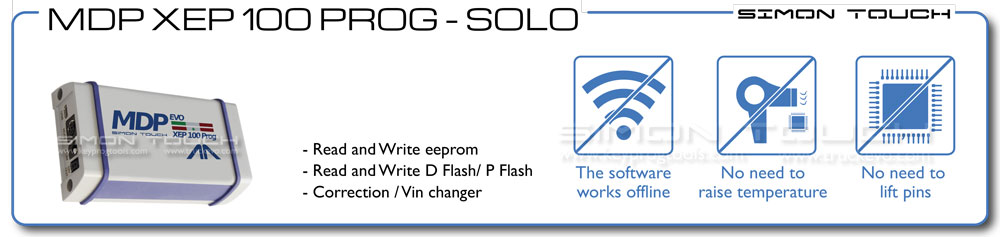

MDP XEP 100 PROG SOLO

MDP XEP 100 PROG SOLO For All CAS Mask types CAS 1/2/3/3+/4/4+

MDP XEP 100 PROG SOLO Package for BMW E And F Series/ MINI/ Rolls and Phanthom All CAS Mask types CAS 1/2/3/3+/4/4+/ you can use the dump and program a key using the DK3 dealer key

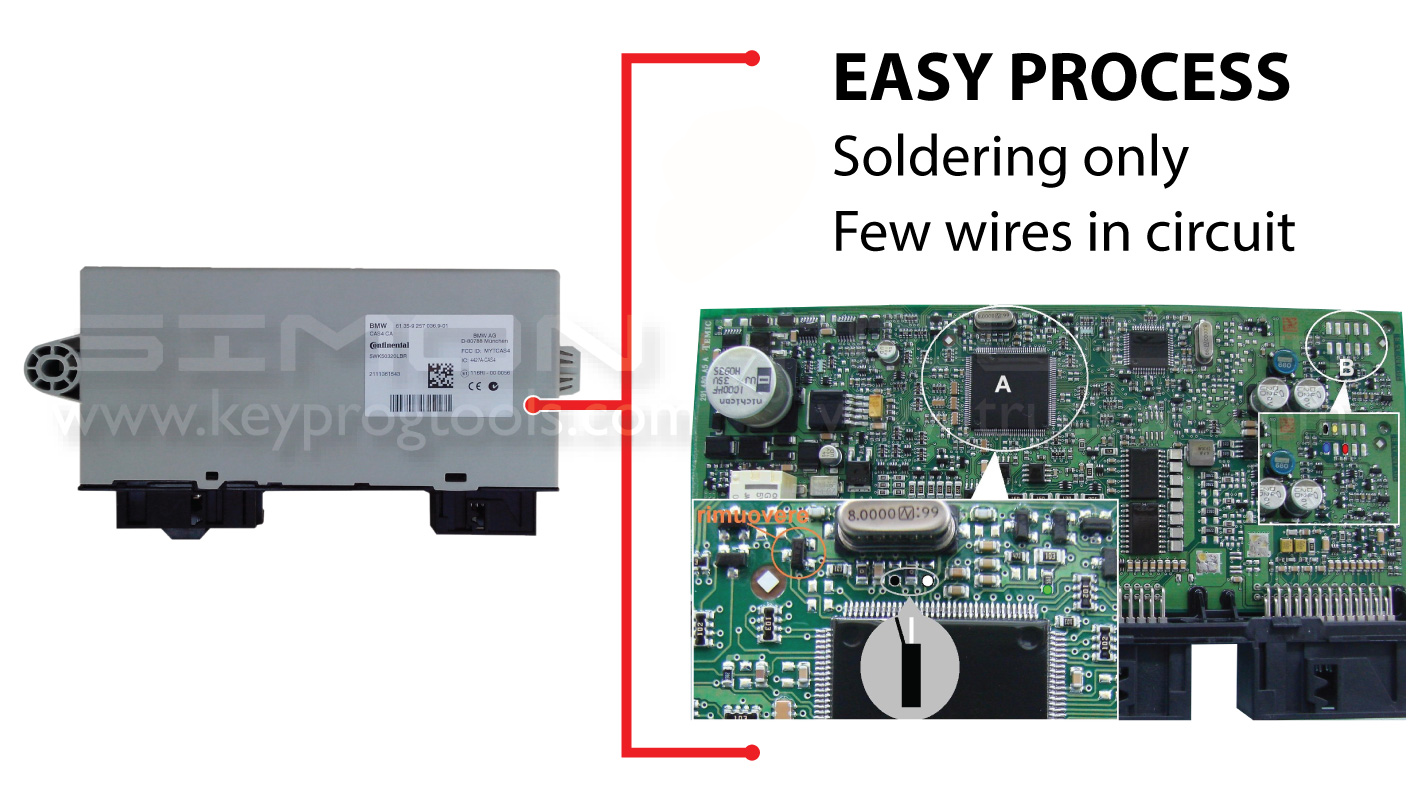

In Circuit
- Read/Write eeprom/D Flash/ P Flash
- Read /Write /Adjust Mileage/ VIN
- Clone the MCU
- Offline programming
- Online update

Click here to see MDP Solo Promotion

MDP XPE100Prog BMW MINI PHANTOM ROLLZ CAS2 CAS3 CAS3 CAS4 CAS4 1L15Y 1N25H 5M48H 9S121

1
MDP XPE100Prog BMW MINI PHANTOM ROLLZ CAS2 CAS3 CAS3 CAS4 CAS4 1L15Y 1N25H 5M48H 9S12


     On Tablet : BMW/MINI All CAS Family.
     On PC : CAS 4 Only

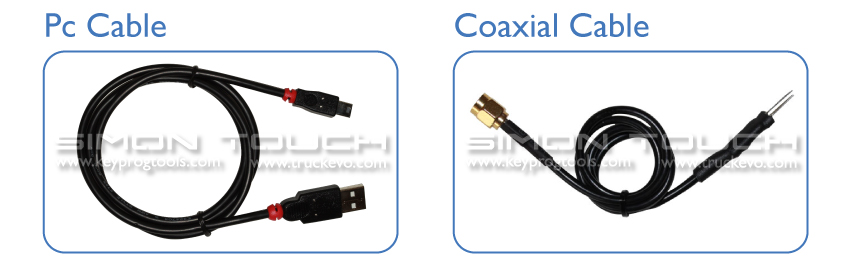

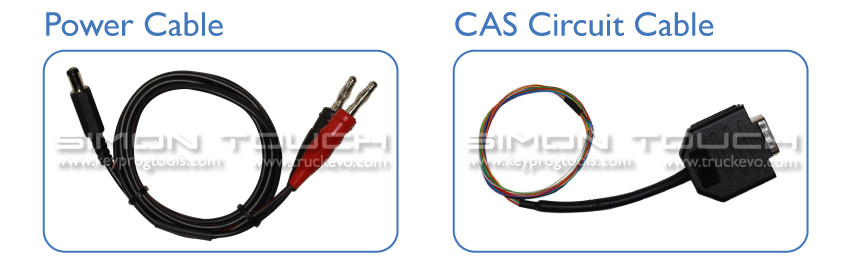

Solo Package includes the following MDP XEP 100 Prog accessories


POWER-CABLE-FOR-mdpPC-CABLE-FOR-MDPMdp-mini-usb-cable

Driver & XEP100Programmer 4.3 pc software Installation manual (v 1.0)

This manual is to guide you to install XEP100Prog interface pc drivers and XEP100Programmer 4.3 pc software on your Windows XP+ pc. (IMPORTANT: if you are using MRPPad tablet, there is no need to install anything on both pc or tablet)
Requisites
• interface XEP100Prog
• USB/mini USB cable
• Windows XP+ (XP, Vista, 7, 8, 10) pc (no PDAs: including tablet, smartphone)
________________________________________
PC Software "XEP100Programmer" pc installation on Windows pc
1. Download pc software "XEP100Programmer 4.3" archive at link http://mrppad.com/Xep100Programmer_installer_4_3.rar
2. Open downloaded "Xep100Programmer_installer_4_3" archive with Winrar (or other package extractor) and launch the included .exe file
3. Follow the installation wizard (remember to check "XEP100Programmer 4.3" checkbox when asked).
4. Congratulations! You finished installing pc software "XEP100Programmer" on your pc.
________________________________________
XEP100Prog interface pc drivers installation
1. Supply power (stabilized +12V) to your XEP100Prog interface (check that the green led lights up still and that the red led blinks and then lights off)
2. Connect your XEP100Prog interface to your pc via USB/mini USB cable (included in the XEP100Prog interface package)
3. Now, we proceed with XEP100Prog interface pc drivers installation. Download XEP100Prog interface pc drivers at link http://mrppad.com/CDM_v2-10-00_WHQL_Certified_32bit.zip
4. Extract the archive to folder "{your_preferred_path}/CDM_v2-10-00_WHQL_Certified_32bit"
5. If you have Windows Vista, 7, 8, 10 ... (Windows XP drivers installation version COMING SOON)
6. Go to "control panel" on your Windows pc
7.From menu "category" choose "Large icons"
8.Select "Device manager"
9.From the "Action" dropdown menu, select "Scan for hardware changes" voice
10.Now you should see XEP100Prog voice from the list, right click on it and select "Update Driver Software" voice
11.Select "Browse mu computer for driver software" option
12.Select "Let me pick from a list of device drivers on my computer"
13.Press "Next" button
14.Click on "Have disk ..."
15.Click on "Browse ..."
16.Browse to "CDM v2.10.00 WHQL Certified_32bit" where you previously extracted pc drivers archive files – select "ftdibus" file and click "Open"
17.Press "ok"
18.Select "USB Serial Converter" and press "Next"
19.In the prompted window click "Yes" (the pc drivers you are installing are safe)
20.Congratulations! You finished installing XEP100Prog pc drivers.
