Commander for Renault/Dacia

 GENERAL

GENERAL DIAGNOSTICS

The Abrites Diagnostics for Renault/Dacia is an extremely capable tool comparable in functionality to the original testers offered by manufacturers. Every unit has the same set of actuators and live data options that is provided by the official software but the information is presented in a much more convenient and understandable way allowing the user to quickly see the data they require in order to solve the problem at hand. Furthermore, the user can observe various parameters simultaneously (either numerically or graphically) without limitations to the number of parameters.

Below, you will be able to find a list of some of the most important and commonly used features of the Abrites Diagnostics for Renault/Dacia (online software):

. Module identification - an extremely important and powerful tool while performing basic diagnostics. The Abrites Diagnostics for Renault/Dacia performs the module identification automatically after choosing the vehicle model
. Reading and clearing of diagnostic trouble codes (DTCs) - this includes complete information about the errors in the module as per the available data as well as the ability to clear it (necessary after the fault has been eradicated).
. Display of actual values - this allows the user to monitor all available parameters reported by the vehicle's sensors hence giving the user the ability to provide a more accurate diagnostic procedure. Various parameters can be observed simultaneously (either numerically or graphically) without limitation to the number.
. Actuator testing - another helpful feature to aid the user to determine where the fault occurs. ALL actuators can be tested separately.
. Advanced diagnostics: The function provides extensive diagnostic data and configuration options.

. General diagnostics updated to support the latest models such as Clio V.

MODULE RENEWAL

The module renewal special function allows the user to return an already used module to factory state condition ready to be adapted to a new vehicle. The software then also allows the adaptation of the renewed modules (different procedures for the various modules). This function can be performed to the following modules:

• Airbag
  AB82 for Clio II Ph2
  AB90 for Clio III, Modus
  Autoliv for Laguna III, Clio III, Modus
  Continental T4 for Logan II, Sandero II, Lodgy, Twingo III, Clio IV
  Continental for Megane III, Laguna III, Fluence, Latitude
  Continental for Twingo II, Kangoo II
  Temic for Logan, Duster, Clio II, Symbol
  Autoliv Airbag Clear Crash for Talisman, Megane IV, Scenic IV, Espace V, Kadjar
• EPS for Clio III/IV, Megane III, Modus, Twingo III, Scenic III - the renewed module will adapt itself after installation in a new vehicle and turning the ignition on.
• Electronic Steering Lock (ESL) for Laguna III (ph1/2), Latitude, Megane III, Scenic III and Clio IV - the renewed module can be adapted to the recipient vehicle by using the PIN Code of the UCH of the donor vehicle.
• Radio – calculation of renewal code from PRECODE
• Handsfree module and UCH for Clio IV as well as for the following models:

Module renewal

The module renewal special function allows the user to return an already used module to factory state condition ready to be adapted to a new vehicle. The software then also allows the adaptation of the renewed modules (different procedures for the various modules). This function can be performed to the following modules:

• Airbag

1. AB82 for Clio II Ph2
2. AB90 for Clio III, Modus
3. Autoliv for Laguna III, Clio III, Modus
4. Continental T4 for Logan II, Sandero II, Lodgy, Twingo III, Clio IV
5. Continental for Megane III, Laguna III, Fluence, Latitude
6. Continental for Twingo II, Kangoo II
7. Temic for Logan, Duster, Clio II, Symbol

• EPS for Clio III/IV, Megane III, Modus, Twingo III, Scenic III - the renewed module will adapt itself after installation in a new vehicle and turning the ignition on.
• Electronic Steering Lock (ESL) for Laguna III (ph1/2), Latitude, Megane III, Scenic III and Clio IV - the renewed module can be adapted to the recipient vehicle by using the PIN Code of the UCH of the donor vehicle.
• Radio – calculation of renewal code from PRECODE
• Handsfree module and UCH for Clio IV as well as for the following models:


  Clio II	Clio III*	Dokker*
  Duster Ph2*	Espace IV*	Kangoo
  Laguna II*	Laguna III*	Latitude*
  Lodgy*	Logan*	Logan II*
  Master	Master II	Megane II*
  Megane III*	Modus*	Sandero
  Sandero II*	Scenic II*	Scenic III*
  Symbol	Trafic	Trafic III*
  Twingo III*	Velsatis*

  *The renewed UCH can be adapted to the vehicle using the AVDI and a simple guided procedure.

ELECTRONIC MODULE PROGRAMMING

This function has been specifically developed to aid our customers when they are having problems with reflashing a certain module or want to transfer the configuration data from one module to another (e.g. instrument cluster). It is dedicated to:

• Reading/writing FLASH - used to recover a module if there has been a problem while reflashing. The software DOES NOT begin reflashing procedure before creating a backup of the current flash in the module. (This is saved on the customer's computer)
• Reading/writing ConfData - used to transfer configuration data and/or coding from one module to another. The most common case the procedure is used is when a customer has to exchange a faulty instrument cluster
• Recovering of Smart 453
• Virgin Engine Control Module (ECM) adaptation for Clio IV, Twingo III, Trafic III, Logan II, Sandero II, Duster Ph2, Dokker, Lodgy



KEY PROGRAMMING

- NEW! SMART 453 and Twingo III key programming even when all keys are lost! (RR019 and PROTAG needed).

- KEY and remote control programming for MEGANE IV (2016+

- NEW!- Renault Traffic III ALL KEYS LOST!!!

The key programming special function allows users to read the PIN code and subsequently program a key to the vehicle. The users can program both key cards and metal-cut keys and can program keys even in ALL KEYS LOST situations. The software also visualizes information about the keys currently programmed in the vehicle. The following models are supported for key learning:

SUPPORTED MODELS:

Instrument cluster recalibration

This special function allows the user to recalibrate the mileage in all relevant modules. For some models you can disable the dashboard synchronization with the ABS, recalibrate the mileage in the ABS or reset it to 0. These options are described in the supported models section.

Supported models:

• Talisman, Megane IV, Scenic IV, Espace V, Kadjar - mileage recalibration in both the instrument cluster and ATE ABS/ESC - by OBDII ( no reflashing necessary)
• Clio IV, Captur including disabling the synchronization with the ABS module or ABS mileage reset
• Twingo III, Trafic III, Smart 453 monochrome display
• Dacia Logan II, Sandero II, Lodgy, Dokker, Duster ph2 dashboards including disabling the synchronization with the ABS module or ABS mileage reset
• Laguna III, Megane III, Fluence (including disabling the synchronization with the ABS module or mileage recalibration in the ABS module)
• Megane II, Clio III, Master III, Kangoo II, Trafic II ph3
• Scenic/Modus (2003-2004), Clio II, Kangoo
• Clio/Kangoo/Megane with HC908 JAEGER instrument clusters (calibration is performed by connecting directly to the cluster using a dash connector)

The "Standard diagnostic functions" of the software include three separate diagnostic protocols (K-line, CAN and UDS). This provides all the versatility that you may need from a tool. Using these three protocols allows you to work on almost all the cars produced by Renault due to the fact that the manufacturer often combines various modules using different communication protocols in one vehicle.
The standard diagnostic functions of the software include:

- Identifying all the modules available in a vehicle is something very important while prforming diagnostics. This is why we have fully automated and detailed module identification incorporated
- Reading and clearing of diagnostic trouble codes (DTCs)
- Actual values are also a part of the standard diagnostics, they allow you to monitor various parameters from the vehicle's sensors hence aiding a more accurate diagnostic procedure
- Actuator testing is another helpful feature included here due to the fact that the vehicle's actuators can be tested separately in order to determine the sourse of an issue
- Graphic Details
Configuration and testing from the production line - here the Abrites Diagnostic Software also provides the ability to perform these tests
The true power of the Abrites Diagnostics for Renault, however, is demonstrated when the software reaches the advanced levels of diagnostics. Where standard diagnostic software
is not enough the Abrites Diagnostics for Renault demonstrates its special functions.Some of the main features of the special functions include:

- PIN code reading and key learning functionality - This functionality was created with the automotive locksmith in mind, It stands out ahead of its competition with its ease of usage and speed making even the most time costly task achievable.
- Reading and Mileage calibration with the added option to disable the synchronization between the cluster and the ABS module - Ideal for replacing components containing the vehicle mileage. Once you replace the faulty mileage containing module you can set the value to the car's actual mileage with no more than a few clicks. Incrementing and decrementing is availabe in this option.
- Car ID replacement for various modules . Again when replacing a faulty module with a used one of the same car you will need to adapt the module ID to the car in order to ensure that the vehicle is roadworthy and this is where this function of the Abrites Diagnostics for Renault will be very useful.
- Airbag memory manager - Allows the user to manage the stored data in the airbag and some of the Airbag modules, available in the Renault vehicles. Ideal for an automotive shop, specializing in accident damage repairs. Including the new - Autoliv Airbag Clear Crash for Talisman, Megane IV, Scenic IV, Espace V, Kadjar

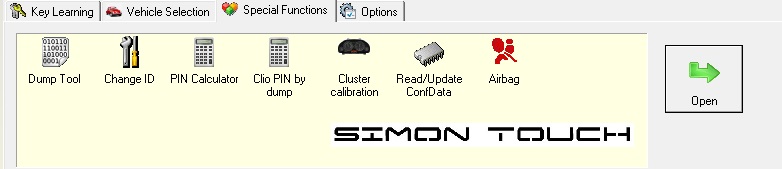

Special functions:

Instrument cluster module calibration

This function allows the user to calibrate the mileage in all relevant modules. Please note that regarding the vehicle models that use ABS synchronization there is the added option to disable the sync. This special function also provides the option to read and write the EEPROM and flash so that in case of any issues during calibration or others you can repair the vehicle.

Supported models:

- Talisman, Megane IV, Scenic IV, Espace V, Kadjar - includes both instrument cluster calibration and ATE ABS/ESC - by OBDII ( no reflashing of instrument cluster required)
- Mileage recalibration with disabling ABS synchronization of Renault Clio IV/Captur, Dacia Logan II/Sandero II/Lodgy/Dokker dashboards - by OBDII
- ConfData Read/Update for Renault Megane III/Laguna III/Clio IV, Dacia Logan II/Sandero II/Lodgy/Dokker dashboards - by OBDII
- Laguna III, Megane III, Fluence, Master III, Scenic/Modus (2003-2004), Clio II, Kango - Johnson Controls instrument clusters - by OBDII
- Renault Megane II, Renault Clio III 2005 year (Visteon instrument cluster), Renault Megane II 2004 - 2005 year (Johnson Controls instrument cluster)
- Clio/Kango/Megane with HC908 JAEGER by dash connector

Key programming

This function allows the user to read the PIN code directly from the device and proceed with key learning immediately.
The function applies to key-cards, as well as metal cut keys.

* Programmer is also needed - ZN002 - PROTAG programmer

Engine Control Unit Advanced Diagnostics

* Reading and updating the EEPROM of the following ECUs:
- EDC15C3
- EDC15C13
- EDC17
- SIRIUS32
- SID301
- SIM32
- SAFIR/SAFIR2/SAFIR200 (reading only)
- IAW 6R.20
- IAW 6R.30 (reading only)

* Reading and updating the FLASH of the following ECUs:
- EDC15C3
- EDC15C13
- EDC17
- SIRIUS32
- SID301
- SIM32

* Clearing IMMO code data for the following ECUs:
- EDC15C3
- EDC15C13
- SIRIUS32
- SID301
- SAFIR/SAFIR2/SAFIR200
- SIM32
- IAW 6R.30

- Virgin Engine Control Module (ECM) adaptation for Clio IV, Twingo III, Trafic III, Logan II, Sandero II, Duster Ph2, Dokker, Lodgy
