The AVDI for Mercedes/Maybach/Smart is a diagnostic software application meant to be installed on a Windows based computer and used together with the AVDI.
The AVDI for Mercedes evolved into a world leading advanced diagnostic system providing its users with the ability to exchange electronic modules by adapting all DAS related modules (EZS/ EIS, ESL/ ELV, TCU, ECU, ISM, etc. The software gradually evolved to include the options to read, save and write the DAS/ FBS data(FBS2/3), to read and write the module's coding, key preparation for BGA (Mercedes chrome) and NEC MCU (plastic) keys and allow the customers who use it to perform tasks often unimaginable to the OEM workshops. Our team has spent thousands of hours and worked on hundreds of different vehicles in order to be able to bring you our product. The AVDI for diagnostics for Mercedes is a constantly evolving systems with numerous new additions almost every month. In its core lays the DAS manager - a function that allows the long feared DAS system to be placed under the user's full control. The AVDI for team also developed our own keys to suit the key learning for all possible types of keys for the supported cars. We are constantly making new breakthroughs in the DAS system. This means that there are always newer models and options included giving our customers the sharp blade of exclusivity and the ability to constantly be one step ahead of the competition by being the only ones who can help the end customer in a cost effective way.
The AVDI EM001 ESL/ ELV Emulator is another example of a simple yet elegant solution to an age old annoying problem with the fragile ESL/ ELV system. The Emulator replaces the fragile ESL/ELV giving your end customer the sense of security that their car will not end up on the back of a tow truck in the middle of the road.
Check our EIS/EZS coverage (FBS2/FBS3) below.
The AVDI for Mercedes/ Maybach/ Smart is designed to perform standard and advanced diagnostics for Mercedes-benz, Maybach and Smart vehicles. In terms of standard diagnostics, The AVDI for Mercedes/Maybach/Smart provides a variety of functions dedicated to:
- Reading and clearing of diagnostic trouble codes (DTCs)
- Display of Actual values
- Actuator tests
- Module identification
- Extended module identification and programming
- Scanning for control units and clearing fault codes in all control units
- Control unit adaptations
- Adjustment of injector injection quantities and adaptation for Diesel Engines (CDI-4, CDI-5).
In the field of advanced diagnostics the AVDI for diagnostics for Mercedes/ Maybach/ Smart allows for a dealer level and beyond that versatility. With its help the users can perform module exchanges, software updates, key learning, mileage calibration and much more. In relation to module exchange, the AVDI for diagnostics for Mercedes/Maybach/Smart allows for modules to be exchanged with new or second hand modules, thus reducing costs and time for the specialists using it. Some other features that the software provides are model specific, for example the repair of the SBC (Sensotronic Brake Control) system, typically located in the W211 and W219 models. A software update and renewal of the 7G–tronic units in the vehicles equipped with it. This allows the replacement of the electronic unit which is well known for its common failures. The AVDI for Mercedes/Maybach/Smart allows mileage recalibration in order to complete the module replacement. Some other features are more service shop oriented – such as the calibration of the service intervals and ASSYST plus intervals. The software provides the options for reading and updating of the flash and EEPROM from most modules installed in these vehicles as well as an easy and thorough key learning procedure for most models of the brands listed above. Everything The AVDI for Mercedes/Maybach/Smart provides is always tested, improved and further developed, allowing the software to stay at the top of all the aftermarket diagnostic solutions for these vehicles. As stated above the AVDI for Mercedes/Maybach/Smart works together with the AVDI in order to help the user to perform standard and advanced diagnostics on Mercedes, Maybach and Smart vehicles. The AVDI for Mercedes/Maybach/Smart combines high level software with unrivalled technical support from the development team of technical specialists and software engineers. The AVDI for Mercedes/Maybach/Smart is a genuinely competitive alternative to "Star Diagnose", providing quicker diagnostics, coding and programming than other Mercedes/Maybach/Smart diagnostic tools. In addition to the standard AVDI Interface software coverage, highlights of the AVDI for Mercedes/Maybach/Smart also include the following functions, many of which are unique. Diagnostics is performed via the OBD-II connector or via the Mercedes-Benz proprietary 38-pin connector (only older cars, pre-2001). Also support for vehicles with a 14-Pin diagnostic link connector (these vehicles are accessible when "Trucks/Buses" is selected as "Chassis Type") has been added. Our PC USB diagnostic interface supports over 26 multiplexed K-Lines and Mercedes-Benz diagnostics CAN-BUS interface (also known as CAN-D).

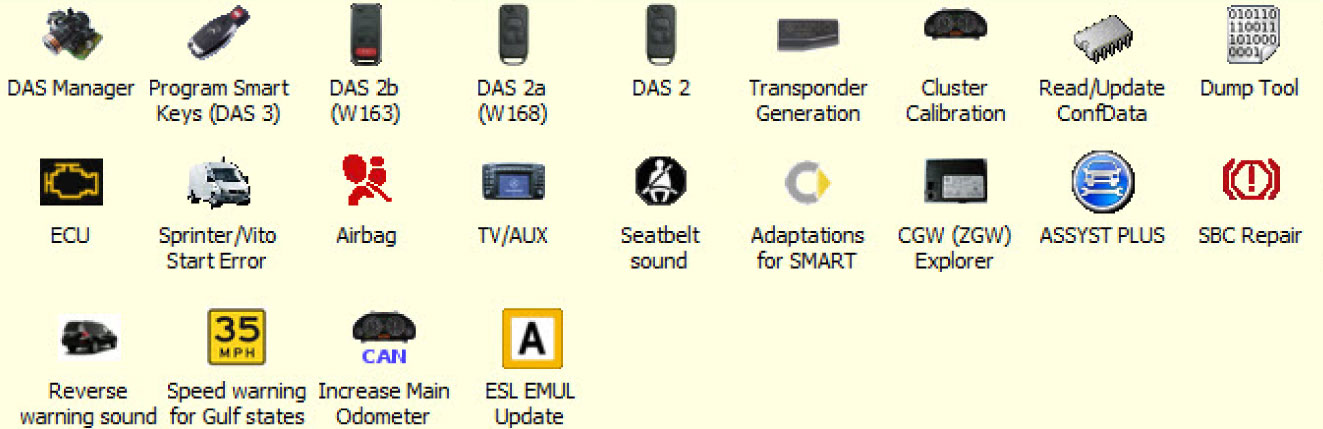

Special functions available for the Abrites Diagnostics for Mercedes/Maybach/Smart:
Instrument Cluster Data Manager
The function allows to update data memory instrument clusters in W221, W216, W219, X164, W164, W203, W251,W463, R171, W209, W220, W215, W169, W245, Smart (2007+), W204, X204, W212, W197,W207, W218,W168, W202, W140, W210, W211, W461, W208, W163, W230, Sprinter, Vito,Viano. You can also modify ASSYST and ASSYST PLUS service history records, update data memory in the Battery Control Module, Tire Pressure Monitor, Electric Seat Adjustment Driver and Electric Seat Adjustment Passenger, Rear Signal Acquisition and Actuation Module 1, Electronic Stability Program (ESP), Airbag, Electronic Parking Brake, Vehicle Power Supply Control Module.
By OBDII - Change ASSYST PLUS Service maintenance records
By OBDII - Change ASSYST Service maintenance records
By OBDII - Read/Update ConfData of Central Gateway (CGW) via OBDII. Works for the following vehicles: W211, W171, W219, W164, X164, W169, W245, W204, W212, X204, W218
TV, ECU, Airbag Manager
This function allows the user to read and update the flash and configuration memory of the following ECUs: Siemens SID, EDC15, EDC16, and Smart EDC15C5. It also allows a service list update, TV and AUX on/off configuration for the following models - S class (W220), SL/CL (2004), E class (211), CLS, CLK, S class (W221 up to 06/2007), Seatbelt warning shut-off (this special function allows you to completely disable the seatbelt warning - both the visual indication via a telltale in the instrument cluster and the sound, which you can hear when the car is moving and you haven't put your seatbelt on). You can also enable these warnings, if for some reason they have been deactivated: speed warning for Gulf States, reverse warning. This special function also gives you the ability to clear stored crash data and read/write memory of electronic control units by OBDII. Supported units are:
It is also possible to unlock and lock to a vehicle, as well as erase the operating hours in Airbag control units, which store this information.
Key Programming, EIS/ESL/DAS Manager/7-Gear ETC/ISM/Infra Red and password reader/Personalization/Activation/Coding
This functionality covers the generation of key dumps/key programming for vehicles with;
DAS-2 - these are vehicles up to year 1998, which have an EEPROM 93C46 in the key -W124 E-Class,W140 S-Class,W202 C-Class,W208 CLK,W210 E-Class
DAS-2A - W168 A - class
DAS-2B - W163 - ML from 1998 to 2005 year. Read/Write AAM and DAS EEPROM data. Learn radio code of transmitter keys. Deactivate/Reactivate keys
DAS Manager - The DAS Manager special function allows many modifications to the different units within the vehicles. Using this function the ECU, TCU, ISM, ELV and EZS can be returned to a virgin state, adapted to a vehicle, personalized, activated and coded. This function is extremely useful when using the DAS Manager to exchange used electronic modules in Mercedes – Benz vehicles. DAS manager has a very intuitive user interface. The procedures are as simplified and filtered as possible. The processes and procedures it could be used for only require your input when it is needed. Reset (Virgin) and adaptation for the greatest variety of EZS/EIS, ESL/ELV, ECU, ISM/DSM/ESM, TCU modules currently available. Complicated module selection steps have been eliminated thus removing the possible issues this may cause.
- EZS password reading from the working BGA key as well as the older types with NEC mcu
- Electrical Ignition Switch (EIS/EZS), K-Line, CAN, UDS) - Virgin/Personalize/Activate/Read ConfData/Read/Write Coding of EIS modules by diagnostics. Key programming and key emulation. Key enabling and disabling. EZS password reading (for EZS modules equipped with motorola HC912/HC908) by IR.
- Electrical Steering Lock (ESL, K-line, LIN, CAN) - Virgin. Read ConfData. Lock/Unlock. Personalize. Activate. Disable/Enable keys. Write VIN of brand new and virgin units.
- Engine Control Unit - Virgin (by calculating the service password). Read FBS data. Read/Save/Write Coding. Personalization. Activation
- Transmission Control Unit – Virgin (by calculating the service password). Read FBS data. Read/Save/Write Coding. Personalization. Activation
Clients who have OLD special function MN023 can download the 7G database from this link: http://update2.abritus72.net/downloads/Abritus-7-Gear-Database_01102015.exe
- Intelligent Servo Module (ISM) – Virgin (by calculating the service password). Read FBS data. Read/Save/Write Coding. Personalization. Activation

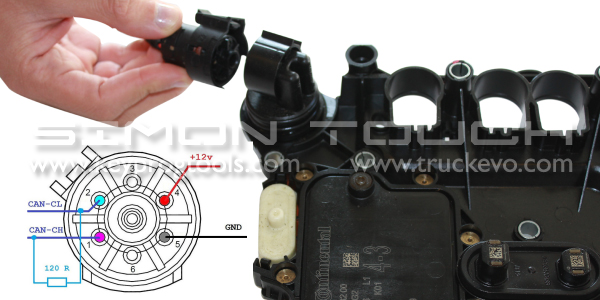

Mercedes 7 Gear Wiring
By OBDII - SMART key teach-in (K-Line and CAN)
"Transponder Generation" function. With this function you can program pre-coded transponders for the following vehicles:
- C Class (before 1998)
- E Class (before 1998)
- G Class (before 1998)
- ML W163 (1998-2005)
After you program the transponder you should also program the transponder key to the Drive Authorization System by using the special function DAS-2B
Read/Update ConfData of Sensotronic Brake Control (SBC). Automatic Repair.
Infra-Red and NEC password reader
You can program an EXTRA key if you have an existing key for the vehicles with a NEC MCU. Supported existing keys should be NEC v. 51 or v. 57. The operation itself is quite simple and straight forward - read data from EIS (through IR cable without removing the EIS), read the data from the existing key with ABPROG, software will then generate the online content of the new key for you and you should then program it with ABPROG.
DAS 3 Key learning (Infra-Red Smart keys)
Key learning for the Infra- Red (IR) Mercedes keys. Reading EZS (EIS) Configuration data dump by IR connector or by OBD (Please note that the password is not read and needs to be acquired by reading the NEC MCU of a working key). Once the Dump is read (either by OBD, IR or programmer) and the password is obtained the calculation can be performed online with the AVDI servers in order to generate key dumps or it can be performed offline using the AVDI PROTAG programmer which needs to be connected to the computer and the AVDI diagnostics for Mercedes/Maybach/Smart. The calculated key dumps can be written onto IR keys (Original or AVDI IR keys) using the PROTAG programmer's IR port or using an ABPROG V4 PCB to which the NEC MCU needs to be soldered.
EIS/EZS coverage (FBS2/FBS3)
ALL KEYS LOST
|Password extraction existing key||All Data Reset by IR Adapter||
Quick password extraction
|Key programming by Dump||Key programming by OBDII|
|W203||C Class||YES (1)||YES (2)||YES||N.A.||YES||YES|
|W202||C Class||YES (6)||YES (2)||YES||YES (4)||YES||YES|
|W204||C Class||YES (7)||YES||YES||YES (4)||YES||YES|
|W169||A Class||YES (5)||YES||YES||YES (4)||YES||YES|
|W176||A Class||YES||YES||YES||YES (4)||YES||YES|
|W210||E Class (with IR keys only)||YES (3)||YES (2)||YES||YES (4)||YES||YES|
|W211||E Class||YES (5)||YES||YES||YES (4)||YES||YES|
|W212||E Class||YES||YES||YES||YES (4)||YES||YES|
|C207||E-coupe||YES (7)||YES||YES||YES (4)||YES||YES|
|W164||ML 2007-2013||YES (3)||YES||YES||NO||YES||YES|
|W166||ML 2013+||YES||YES||YES||YES (4)||YES||YES|
|W414||Vaneo||YES (5)||YES||YES||YES (4)||YES||YES|
|W245||A Class -2011||YES (6)||YES||YES||YES (4)||YES||YES|
|W215||CL Class -2007||SOME||YES||YES||NO||YES||YES|
|W216||CL Class 2007+||YES (3)||YES||YES||NO||YES||YES|
|C209/A209||CLK 2002-2010||YES (5)||YES||YES||YES (4)||YES||YES|
|C208/A208||CLK -2003||YES (3)||YES (2)||YES||YES (4)||YES||YES|
|A207||CLK 2010+||YES (5)||YES||YES||YES (4)||YES||YES|
|W219||CLS 2004-2010||YES (5)||YES||YES||YES (4)||YES||YES|
|W218||CLS 2012+||YES||YES||YES||YES (4)||YES||YES|
|W463||G Class -2005||YES (1)||YES (2)||YES||N.A.||YES||YES|
|W463||G Class 2005-2012||YES (5)||YES||YES||YES (4)||YES||YES|
|W463||G Class 2012+||YES||YES||YES||YES (4)||YES||YES|
|X164||GL 2007-2013||YES (3)||YES||YES||NO||YES||YES|
|X166||GL 2013+||YES||YES||YES||YES (4)||YES||YES|
|W251||R Class 2005-2007||NO||YES||YES||NO||YES||YES|
|W251||R Class 2007+||YES (3)||YES||YES||NO||YES||YES|
|W221||S Class 2005-2008||NO||YES||YES||NO||YES||YES|
|W221||S Class 2008-2013||YES (3)||YES||YES||NO||YES||YES|
|R170||SLK -2005||YES (5)||YES||YES||YES (4)||YES||YES|
|R171||SLK 2005+||YES (5)||YES||YES||YES (4)||YES||YES|
|R230||SL 2001-2004||YES (5)||YES||YES||YES (4)||YES||YES|
|C197/R197||SLS 2010-2015||YES||YES||YES||YES (4)||YES||YES|
|W176||CLA Class||YES||YES||YES||YES (4)||YES||YES|
|W906||Sprinter||YES (5)||YES||YES||YES (4)||YES||YES|
|W946||Vito/Viano||YES (6)||YES||YES||YES (4)||YES||YES|
|W246||B Class||YES||YES||YES||YES (4)||YES||YES|
|W216||CL Class 2005-2008||NO||YES||YES||NO||YES||YES|
|W216||CL CLASS 2008-2013||YES (3)||YES||YES||NO||YES||YES|
|R172||SLK/SLC 2011+||YES (7)||YES||YES||YES (4)||YES||YES|
|X204||GLK||YES (7)||YES||YES||YES (4)||YES||YES|
|R231/W231||SL 2012+ FBS3||YES||YES||YES||NO||YES||YES|
(1) Extraction by IR-adapter above 3 minutes max
(2) Very slow so recommended is extraction by IR-adapter
(3) Should be manually inserted IR-adapter
(4) Average password extraction time 40 minutes
(5) Password extraction requires ESL connection
(6) Password extraction requires ESL connection and manual inserting of IR-adapter
(7) Password extraction requires ESL connection average time 120 minutes
