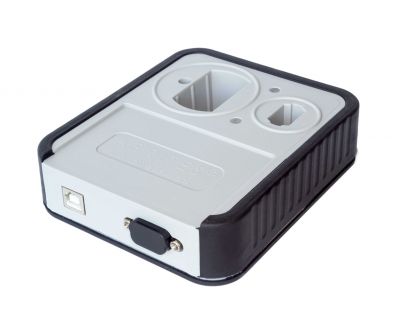

PROTAG Programmer

protagThe PROTAG programmer is the latest generation tool intended for operation with keys and transponders used in the latest authentication systems and immobilizers.

It provides all the current functionality of the Tag programmer and a lot more. PROTAG is ready to program all keys and transponders produced by our company.
With the PROTAG the Simon Touch customers will have access to a large variety of new features, it has a solution for every case where a key programmer is needed. It has a complete coverage of key identification and provides reading, programming and authenticating for Low frequency transponders (all types including latest generation transponders such as the Infra-Red keys produced by Mercedes-Benz™).
The new PROTAG programmer is also conveniently and ergonomically shaped to provide additional ease of usage and it has slots for the separate respective transponders, key and cards that need to be programmed. The PROTAG also provides more durability when used in hard conditions. It also limits the margin for transponder positioning error.


Features


High Frequency transponders HF 13.56 MHz

read/program/authenticate
ISO/IEC 14443 A/MIFARE Classic 1K, MIFARE Classic 4K, MIFARE Ultralight, MIFARE Ultralight C, MIFARE PLUS and MIFARE DESFire
ISO/IEC 14443 B and FeliCa
ISO/IEC15693, ICODE

Low Frequency transponders LF 125 KHz

read/program/authenticate
All types including latest generation transponders from NXP® (hitag-3, hitag-pro, hitag-aes ...), Texas® (DST-AES, CRAID-AES ....)

Radio Transceiver/Receiver/Analyser

Operating 300-348 MHz/ 387-464 MHz/ 779-928 MHz ISM/SRD bands
2-FSK, 4-FSK, GFSK, and MSK supported as well as OOK and flexible ASK shaping

Infrared Transmitter/Receiver/Analyser

Designed for Infra-Red keys produced from Mercedes-Benz™

Technical data

Product Dimensions
135 × 110 × 35 mm
Weight
222 g
Power
5V DC
Consumption
0.3A
Interfaces
USB, ABRITES DB15
Storage temperature
-20° to 70°C
Storage humidity level
5% to 90% (non-condensing)
Operation temperature
5°C to 40°C
Operation humidity level
15% to 70% (non-condensing)
