ABPROG

This programmer works together with your AVDI interface.
With the help of the ABPROG programmer you can:

Perform NEC v850 MCU reading.

- Reading unlocked NEC MCUs. Such MCUs are commonly found in the BCM 2 modules of the VAG A4/A5/Q5 cars. They are also present in the Magneti Marelli clusters of the Volkswagen group cars. The NEC MCUs of this type are also present in Renault hands free modules so their usage is very extensive in modern automotive electronics. The ABPROG has the ability to read both the flash and the DATA flash of these MCUs. ABPROG can also write these MCUs. If you are interested in a particular MCU you need to go through the specifications of it in order to be sure where you need to connect so that you can read the MCU in question. This means that reading and updating the V850 MCUs will require a higher level of expertise.

  • Read the SSID of a key, erase the NEC chip and then program it again
  • With the ZN031 adapter for M35xxx/SPI/I2C together with the Abrites EEPROM Programmer software you can erase and write the following types of SPI EEPROM memory with and without incremental registers:
    M35080VP
    M35080V6
    D080D0WQ
    D160D0WQ
    M95010,M95020,M95040,M95080,M95160,M95320,M95640
    M95128, M95256
    24XXX
    93XXX

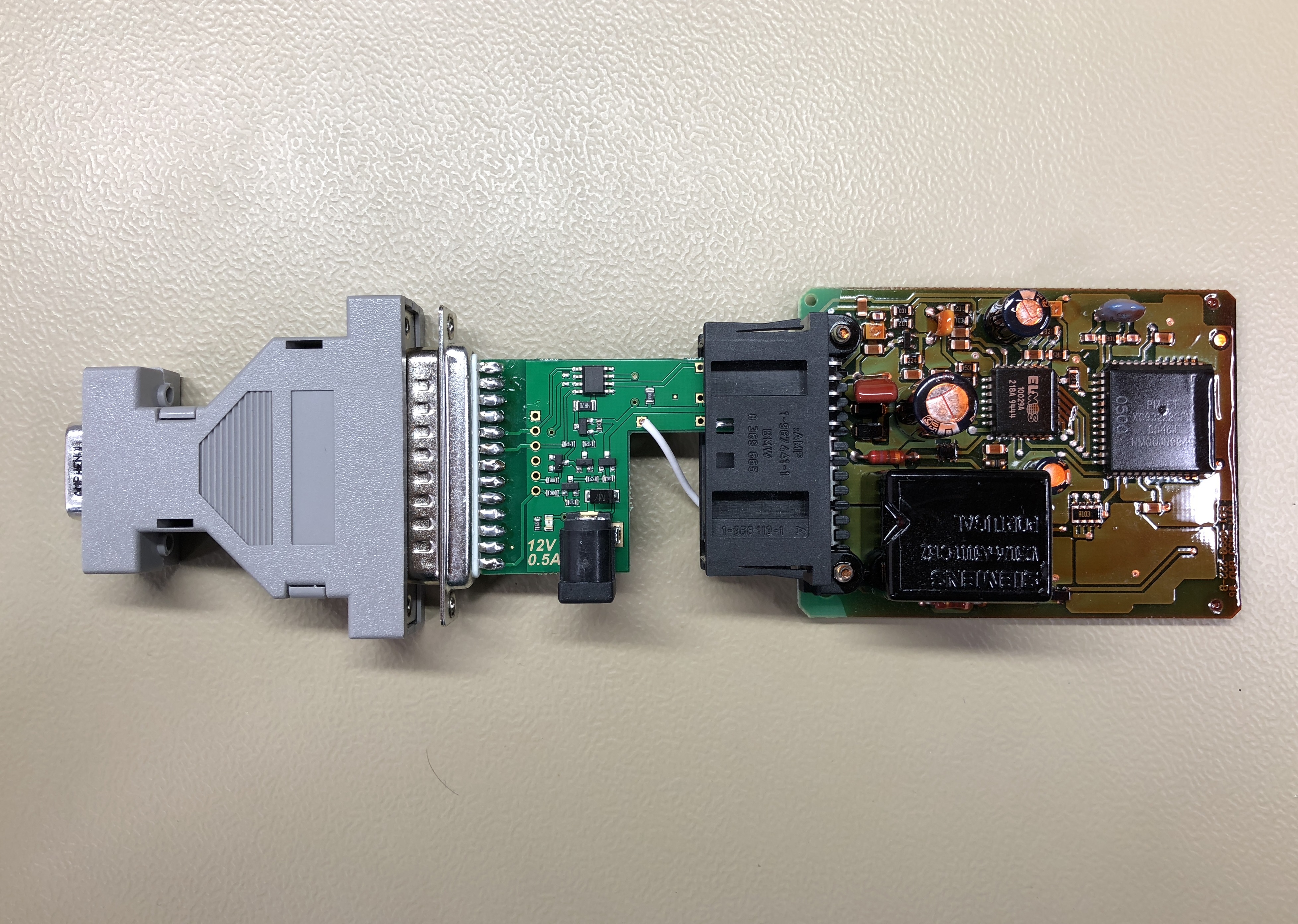

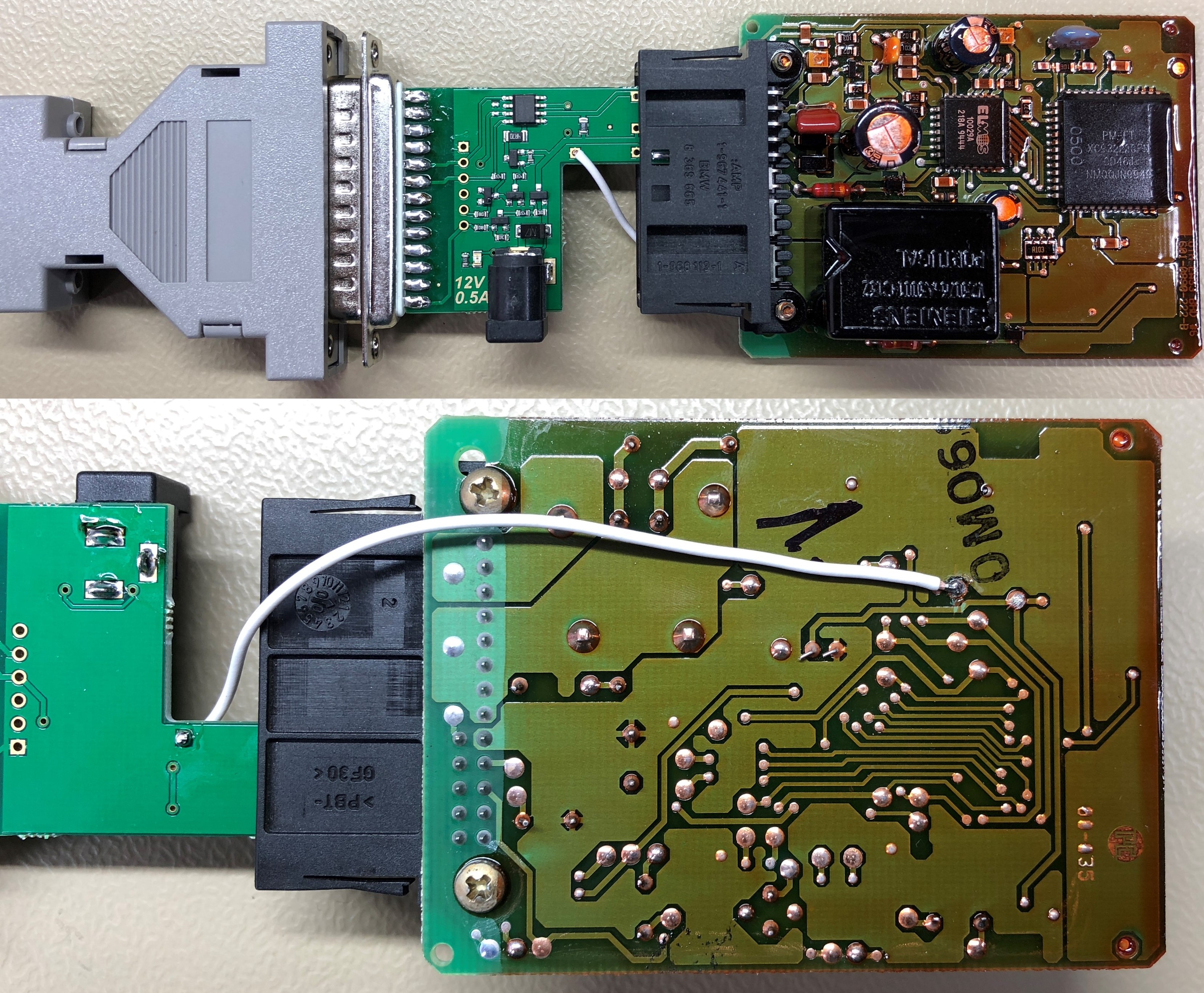

  • BCM2 Adapter / X95 adapter - With the help of this adapter you can read the eeprom from a BCM2 module from the following vehicles - Audi A4/A5/Q5 2007+, Audi A6/A7/A8 2011+, VW Touareg 2010+
  • Also you can read the eeprom from the BCM module in Renault (X95) based vehicles - Megane III, Scenic III, Fluence 2011+
  • ZN032 - Adapter with socket for NEC MCU

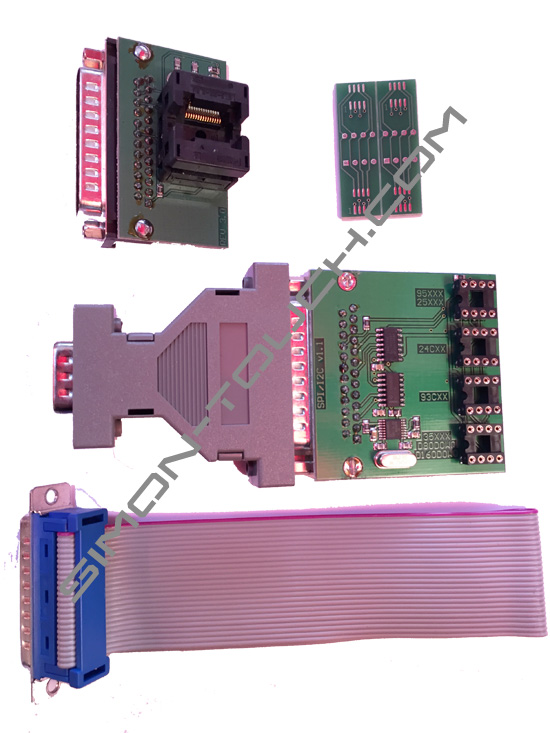

ABPROG--ZN030-ZN031-ZN032
