AVDI Diagnostics for Subaru

subaru

The new AVDI diagnostics for Subaru offers Subaru workshops a new - much easier and faster way to perform diagnostics on Subaru vehicles. Based on the latest AVDI online diagnostic platform the AVDI diagnostics for Subaru offers outstanding performance even in comparison to the OEM tools. For the moment we have full diagnostic codes reading and clearing, live data and module identification for engine control modules (diesel and petrol powered; four and six cylindered; turbo charged and naturally aspirated) transmission control modules, ABS modules, Vehicle Dynamics Control System modules and Integrated unit control modules as well as other electronic modules integrated into modern Subaru, especially the ones produced after 2003. The new diagnostic platform developed by our team works exceptionally well with the Subaru vehicles. It provides the users with agility and speed never before seen in the world of aftermarket diagnostic software. Subaru workshops worldwide now finally have a true alternative and this is just the beginning - the development process continues.

The standard diagnostic functions of the software include:

  • Scan for units
  • Reading/clearing fault codes
  • Temporary Diagnostic code (s) display
  • Memorized Diagnostic code (s) display
  • Current data display

By OBDII - clear crash data. Supported are DENSO modules with H8SX Renesas MCU

98221-AJ030: Subaru BRZ 2.0L 2015; Subaru Forester 2.5L 2012-2015; Subaru Impreza 2012-2014; Subaru Outback 2.5L 2012-2015; Subaru Legacy 2.5L, 3.6L 2015; Subaru WRX, WRX STI 2015
98221-AJ050: Subaru BRZ 2.0L 2015; Subaru Forester 2.5L 2015; Subaru Outback 2.5L 2015; Subaru Legacy 2.5L, 3.6L 2015
98221-AJ06A: Subaru Legacy 2.5L 6MT, CVT, TURBO, 5AT, Subaru Legacy 3.6L 5AT 2010
98221-AJ07A: Subaru Outback 2.5L 6MT, CVT, Subaru Outback 3.6L 5AT 2010
98221-AJ08A: Subaru Legacy 2.5L 6MT, CVT, TURBO 6MT, Subaru Legacy 3.6L 5AT, 5AT 2011-2012; Subaru Outback 2.5L, 3.6L, Base Vagon 2011
98221-AJ09A: Subaru Outback 2.5L 6MT, CVT, Subaru Outback 3.6L 5AT 2011-2012
98221-AJ110: Subaru Legacy B4 4D SEDAN 2010-2011
98221-AJ15B: Subaru Legacy 2.5L 6MT, CVT, Subaru Legacy 3.6L 5AT 2013-2014
98221-AJ16A: Subaru Outback 2.5L 6MT, CVT, Subaru Outback 3.6L 5AT 2013-2014
98221-AJ16B: Subaru Outback 2.5L 6MT, CVT, Subaru Outback 3.6L 5AT 2013-2014
98221-AJ130: Subaru BRZ, Subaru Legacy 2.5L, Subaru Outback 2.5L 2013-2015
98221-CA090: Subaru BRZ (20D) 6AT 2013
98221-CA120: Subaru BRZ (20D) 6AT 2014-2015
98221-FG110: Subaru Impreza (257) 6MT 2011-2014; Subaru Impreza 2.5L 5MT 2011; Subaru Impreza 2.5L TURBO 5MT 2011-2014; Subaru STI (257) 6MT 2011-2014; Subaru STI 2.5L TURBO 2014; Subaru WRX 2.5L TURBO 5MT 2011-2014
98221-FG130: Subaru Impreza 2.0L 5MT, CVT 2012
98221-FJ140: Subaru BRZ 2013-2015
98221-FJ240: Subaru XV Crosstrek 2.0L 5MT, CVT, HYBRID CVT 2013
98221-FJ241: Subaru XV Crosstrek 2.0L 5MT, CVT, HYBRID CVT 2013
98221-SC090: Subaru BRZ 2013-2015; Subaru Forester 2012
98221-FJ290: Subaru Impreza 2.0L 5MT, CVT 2013
98221-FJ291: Subaru Impreza 2.0L 5MT, CVT 2013
98221-FJ440: Subaru Impreza 2.0L 5MT, CVT 2014
98221-FJ450: Subaru XV Crosstrek 2.0L 5MT. CVT 2014-2015
98221-SC100: Subaru Forester 2.5L 4AT X, MT X, TURBO 4AT XT 2011-2013
98221-SC130: Subaru Forester (20F) CVT XT, Subaru Forester (20F) CVT XT, Subaru Forester 2.0L CVT XT, 6MT, CVT 2014-2015

Special Functions:

  • Key learning for Subaru vehicles.
  • When all keys are lost we now will no longer need to replace the smart system or immobilizer.
  • Smart system and immobilizer reset by OBD. You will not need to replace the smart system and immobilizer, now you can just reset them, not only that - you can now reset them by OBD.
  • Smart ECM registration
  • Engine ECM registration

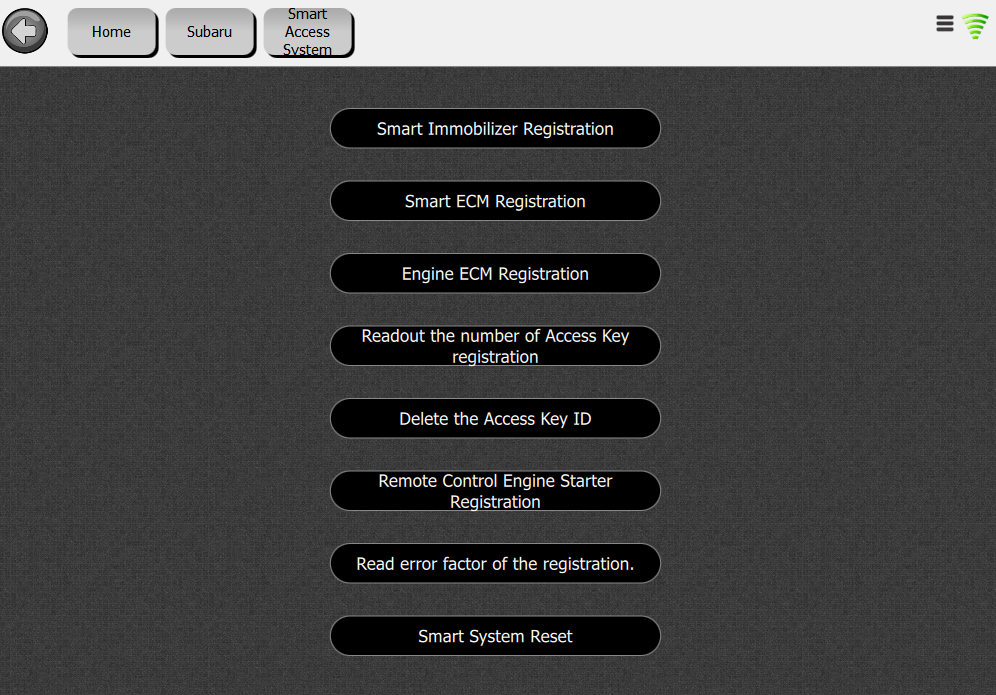

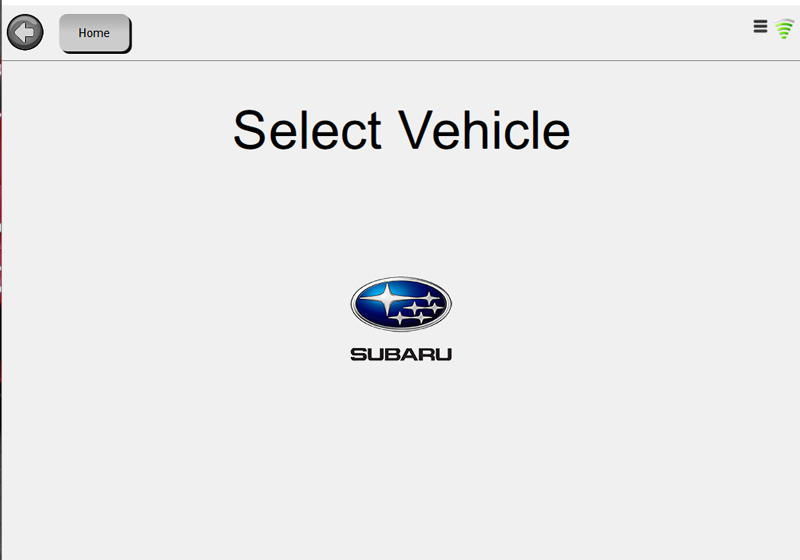

Screen shots:

subarosubaro2
