AVDI Accesories

In order to assist our customers we have developed connector cables according to the on board diagnostic connectors of the various vehicle brands. Below you can find the different additional cables for brands such as BMW, Mercedes, bikes as well as the J1850 adapter.

Additional cables and adapters
Name Description Image
 CB002   AVDI cable for 20 pins round diagnostic connector for BMW CB002
 CB003  AVDI cable for 38 pins round diagnostic connector for MERCEDES CB003
 CB004  AVDI cable for 14 pins round diagnostic connector for MERCEDES Sprinter CB004
 CB005  AVDI cable for ESL(ELV) for Mercedes CB005
 CB006  AVDI cable for instrument cluster Mercedes W203, W209, W211, W219 CB006
 CB007  AVDI cable for Bombardier diagnostic connector CB007
 CB008  AVDI cable for BMW bike diagnostic connector CB008
 CB009  AVDI cable for connection with trucks Deutcsh 6 pin (J1708) CB009
 CB100  AVDI OBDII cable (SAE J1962) CB100
 CB101  AVDI extension cable for TAGPROG
 This cable is a part of TAGPROG and ABPROG programmers (ZN001, ZN030)
 CB102  EXT cable for 25 pin F/M CB102
 CB103  OBDII Y cable M/2xF CB103
 CB104  USB Y 2 x USB-A CB104
 CB201  AVDI cable for connection with Suzuki Marine Engines type 1 CB201
 CB202  AVDI cable for connection with Suzuki Marine Engines type 2 (round) CB202
 CB203  AVDI cable for connection with Yamaha Marine Engines CB203
 CB204  AVDI cable for connection with Evinrude Marine Engines CB204
 CB205  Evinrude Flash Update cable CB205
 CB301  AVDI cable for connection with Aprilia Bikes CB301
 CB302  AVDI cable for connection with KTM Bikes CB302
 CB303  AVDI cable for connection with Benelli Bikes CB303
 CB304  AVDI cable for connection with Suzuki Bikes (6 pins) CB304
 ZN001  TAGPROG Programmer
 Programmer for transponders and keys. The following type transponders are covered:
 T5, Temic 11, Temic 12, TK5551, TK5561, Temic 8C, Megamos 13, Megamos 48,
 Megamos 8E, Tiris 4C, Tiris 4D, Tiris 4E, Texas DST+, Philips PIT, Hitag-2, Hitag Pro,
 Hitag Extended, JMA TPX1, JMA TPX2. TAGPROG programmer can work with AVDI
 interface only.
 ZN030  ABPROG programmer
 The following ICs are supported M35080xx, D080D0WQ, D160D0WQ, SPI 95xxx, I2C
 24XXX, Microwire 93XXX, mcu in BCM2 of Audi A4/A5/Q5/A6/A7/A8/ VW Touareg,
 mcu in BCM of Renault Megane III, Scenic III, Fluence. ABPROG programmer (ZN030)
 including the ZN031 adapter. ABPROG programmer works with AVDI interface only.
 ZN032  ABPROG NEC adapter with socket
 The adapter is intended for ABPROG programmer ZN030 to be used with NEC MCUs
 from Mercedes IR-keys.
 ZN033  ABPROG NEC adapter
 This adapter is for the customers who already have ABPROG - ZN030 programmer.
 ZN036  IR AVDI cable
 Cable for reading data from EIS through Infra Red

Renault CAN adapter
Adapter for diagnostics of all multimedia modules present in the car (Radio, Navigation,
Bluetooth, Telephone, e.t.c).


Fiat/Chrysler CAN adapter
Diagnostics adapter for ABS (Anti Lock Brakes), HALF (Haptical Lane Feedback),
ESL ( Electronic Steering Lock), ORC (Occupant Restraint),
EPS (Electric Power Steering), PAM (Parking Aid Module) present in Fiat 500x and
Jeep Renegade


Abrites Toyota transponder emulator
Transponder emulator used in conjunction with special function TN006 in order to
emulate a master key for Toyota/Lexus vehicles thus allowing the programming of
other keys and/or emergency starting the car without taking out the Smart System

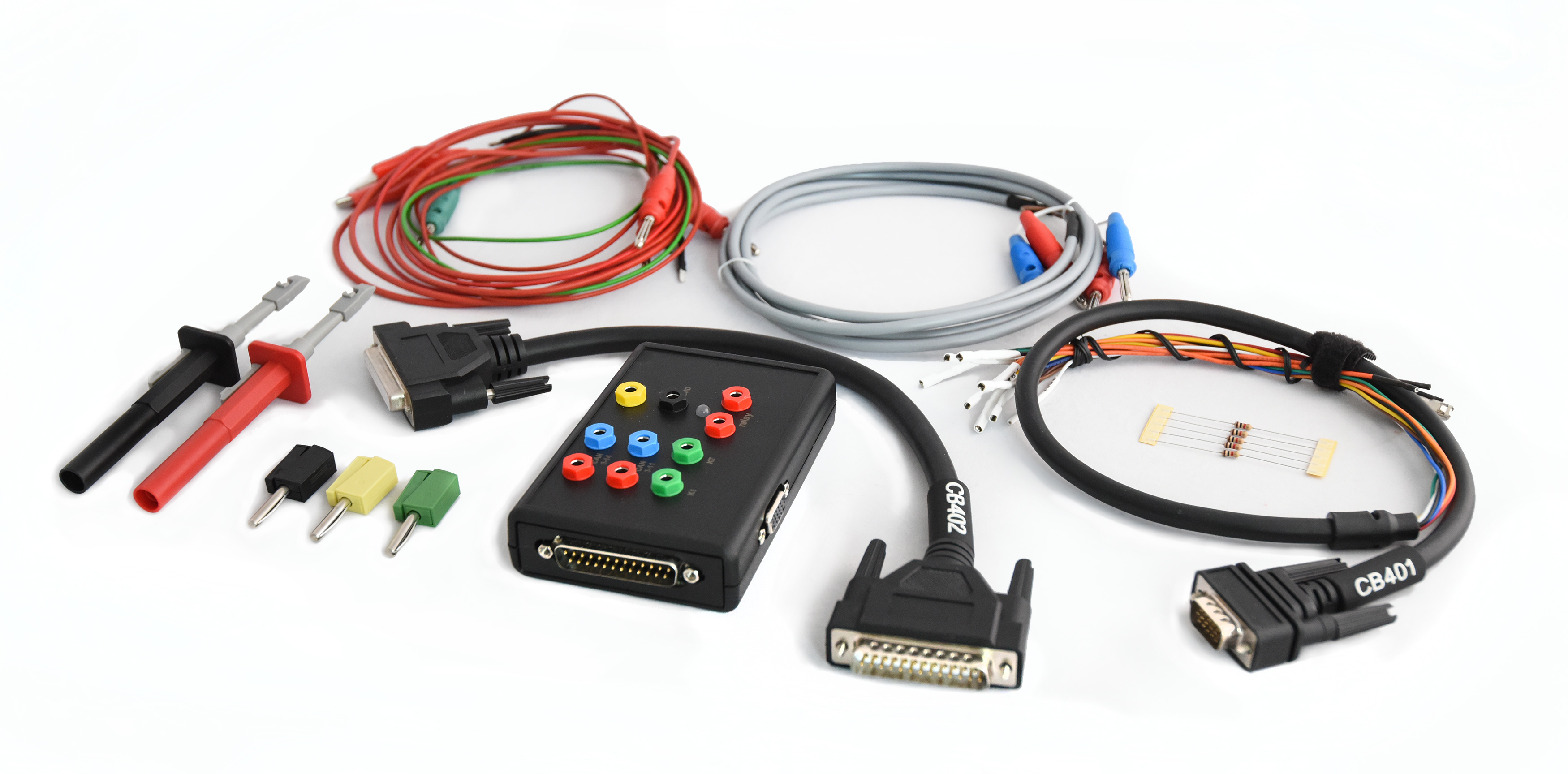

Abrites adapter and cable set for Mercedes-Benz
Set of cables used together with the AVDI in order to facilitate and speed up the
extraction of key passwords, the virginazation of modules and update of emulators

dsc 2879 copy ugtnhHK
 J1850  SAE J1850 adapter for AVDI
 Adapter will allow diagnostic operation with SAE J1850 based diagnostic protocols
 used in the past from Chrysler, Dodge, Jeep, Plymouth, Ford.
