V 2.24 BSI Examiner OBDII

Available for module "Multifunctional Ecu", added new group BSI EXAMINER:

  • BSI VALEO BSI2004-P0X-00 programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI VALEO BSIEV-X0X-00 programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI VALEO BSI-N0X-00 programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI JOHNSON CONTROL BSI2004-H0X programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI JOHNSON CONTROL BSI04EV-K0X programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI JOHNSON CONTROL BSI04EV2-KEX programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI SIEMENS BSI-E0X-00/BSI-F0X-00 programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI SIEMENS BSI-S0X-00 programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface
  • BSI CONTINENTAL BSI-Q0X-00 programming (characteristics data, complete read/write EEPROM, read/write flash, may be duplicated, code card, history) via OBD-PRO interface

    BSIs after 6/2015 and updated BSIs may not be supported.
    v2-24 BSI Examiner OBD-en

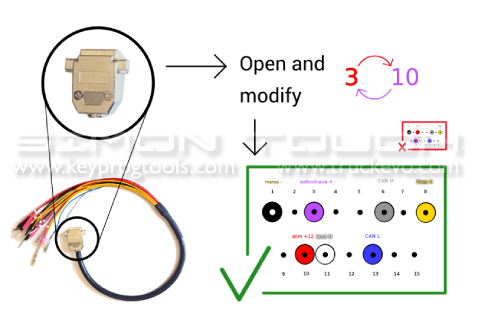

IMPORTANT: generic optional cable connection change

Cavo opzionale generico avviso modifica base-en
Notification to all our customers who got "Generic Optional Cable":
The "Generic Optional Cable" MUST be update in the following way:
1. open the gray connector (unscrew the 2 screws)
2. unsolder purple wire
3. unsolder red wire
4. solder purple wire on n. 3 connector's pin
5. solder red wire on n. 10 connector's pin
6. close the gray connector (screw the 2 screws)

V 2.23 Fiat ME17.3.0

Available for module "Engine ECUs":

Alfa Romeo ME17.3.0 programming (characteristic datas, EDC17 online checksum recalculation, read/write EEPROM + flash) via EDC17Prog interface
Fiat ME17.3.0programming (characteristic datas, EDC17 online checksum recalculation, read/write EEPROM + flash) via EDC17Prog interface
Lancia ME17.3.0programming (characteristic datas, EDC17 online checksum recalculation, read/write EEPROM + flash) via EDC17Prog interface
Available for module "Multifunction":
BCM Porsche (Centralina porte) 1L15Y programming (read/write data flash, read/write program flash) via XEP100Prog interface

V 2.22 FCA EDC17C69

Available in module "Engine ECUs":
• Alfa Romeo EDC17C69 programming (characteristics datas, EDC17 online checksum recalculation, read/write EEPROM) via EDC17Prog interface
• Fiat EDC17C69 programming (characteristics datas, EDC17 online checksum recalculation, read/write EEPROM) via EDC17Prog interface
• Jeep EDC17C69 programming (characteristics datas, EDC17 online checksum recalculation, read/write EEPROM) via EDC17Prog interface

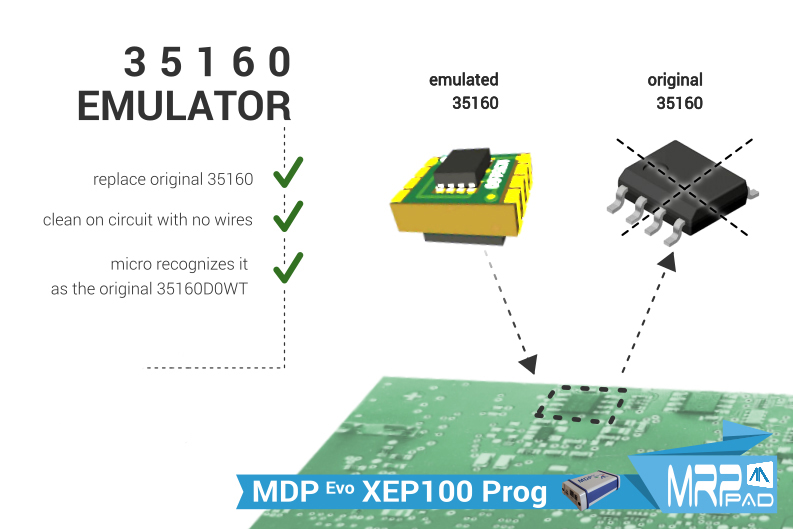

V 2.21 BMW dashboards 35160 D0WT emulator

Available in module "programmer":

BMW dashboards from August 2015 are equipped with 35160D0WT EEPROM which is not erasable and has page-id which locks this memory to its own dashboard-micro. If you need to repair such dashboard you CANNOT erase or substitute original memory with recovered/bought one. You have to emulate original memory with our emulator.
EEPROM 35XXX 35160 EMULATOR programming (guided procedure to clone original 35160 D0WT EEPROM and copy in emulator, erase, modify, write, content and ID Page) via XEP100Prog interface
Available in module "Dashboards":

BMW 3 SERIES F30 35160 programming (characteristic datas modify, read/write EEPROM) via XEP100Prog interface

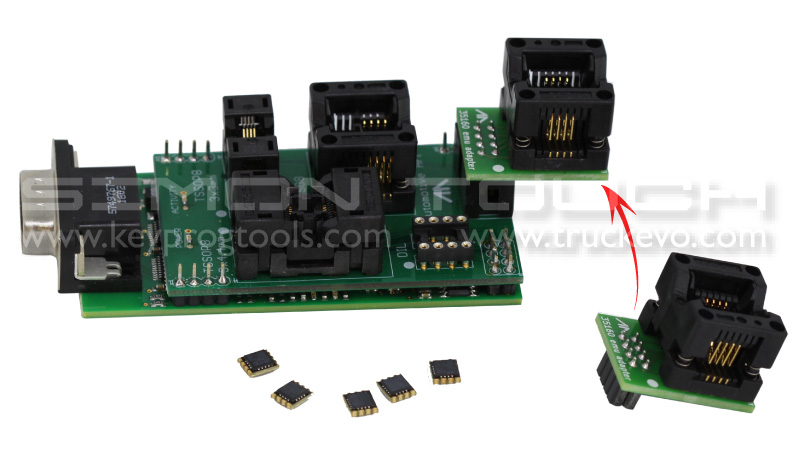

MDP-BMW-emulator

v2-21 BMW-dashboards-35160-d0wt-emulator XEP100Prog-en

v 2.20 FCA MJD9 OBD

Available in "ECUs" module:

FCA MJD9DF programming (identification, caratheristic datas, read/write EEPROM, read/write internal flash) via OBDII interface
FCA IAW59M (hw<100) programming (identification, caratheristic datas, read/write EEPROM, read/write internal flash) via OBDII interface
FCA IAW59M/5AM (hw 101/306) programming (identification, caratheristic datas, read/write EEPROM, read/write internal flash) via OBDII interface
FCA IAW59M/5AM (hw > 306) programming (identification, caratheristic datas, read/write EEPROM, read/write internal flash) via OBDII interfacev2-20 FCA-MJD9 OBD-en

V 2.19 Land Rover Jaguar dashboards OBD

Available in "Dashboards" module:

Jaguar XF programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Jaguar F-Type 2016 programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Jaguar XJ 2016 programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Jaguar XE programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Jaguar F-Pace programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Land Rover Evoque 2016 programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Land Rover Range Rover 2016 programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Land Rover Vogue 2016 programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Land Rover Range Rover Sport 2016 programming (characteristic datas, read/write EEPROM) with 93C86 EEPROM via OBDII
Available in "Multifunction" module:

Land Rover KVM 9S12XET256 (2M35J) programming (automatic re-activation keys programming) via OBDII
Land Rover KVM 9S12XEQ384 (1M12S) programming (read/write EEPROM, read/write Data Flash, read/write Program Flash, automatic re-activation keys programming) via OBDII

v2 19 LandRover Jaguar dashboards OBD en

V 2.18 Fiat - Ford - Land Rover dashboards OBD

Available in "Dashboards" module:

• Ford Ecosport 9S12XEQ384 programming (characteristic data, read/write EEPROM)
• Ford Transit 93C76 programming (characteristic data)
• Fiat Freemont 93C76 programming (characteristic data, ecu hours)
• Dodge Journey 93C76 programming (characteristic data, ecu hours)
• Range Rover 24C16 programming (characteristic data)
• Range Sport 24C16 programming (characteristic data)
• Range Rover Vogue 24C16 programming (characteristic data)
• Jaguar XJ 24C16 programming (characteristic data)

 Land Rover OBD Dashboard Key Programmer

New update for MDP XEP 100 PRO

All Motorola old (912/9S12/9S12X not blocked read/ write eeprom, flash, data flash, program flash with auto detect frequency)
BMW FRM2/3 all models

V 2.16 Renault DCM 1.2 CAN line

Available in "multifunction" module:

Audi EZS-KESSY A6/Q7/AllRoad 9S12DG256 programming (read/write EEPROM, read/write flash, decode keys, modify immo datas)
Smart Fortwo 2011 -> BCU HCS12DX256 programming (modify characteristic datas, read/write EEPROM, read/write flash)
Available in "ECUs" module:

Renault Delphi DCM 1.2 linea CAN programming (modify characteristic datas)
Porsche Bosch Motronic ME7.8 EEPROM 95640 programming (modify characteristic datas, overrevs)

v2-16 Renault DCM-1-2 OBD-en

Universal Memories Adapter for XEP100Prog + MRPPad

Will be available soon the new "UNIVERSAL MEMORIES ADAPTER" hardware module. It's a module to be used with XEP100Prog + MRPPad to manage memories.

Some of its specifications:

  • Support for TSSOP8 (DW), TSSOP8 (DS), DIL, SO8 memories

  • Support for 35XXX set memories: protected area erase, complete erase, write

  • "In-circuit" connection to the memory

  • It's safe: even if memory is wrongly placed or badly connected, universal memories adapter recognizes the situation and stops

  • Current protected and voltage protected

  • Can supply up to 1 A of current on each of 8 pin (thanks to FPGA programmable logic)

  • Further future developments allow to support every memory format (thanks to FPGA programmable logic and replaceable hardware connectors module)

  • To be used with XEP100Prog interface + MRPPad

new module universal memories adapter-en

V 2.15 Ford Dashboards

Available:

  • Ford B-MAX - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford CONNECT - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford CONNECT (HCS12H256/HCS12HZ256) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford FIESTA (HCS12H256/HCS12HZ256/HCS12XEQ384) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford FOCUS (HCS12H256/HCS12XHZ512/95320) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford FOCUS C-MAX(HCS12H256/HCS12XHZ512/95320) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford FUSION (HCS12H256/HCS12HZ256) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford GALAXY (24C16/24C32/HCS12XHZ512) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford KUGA (HCS12XHZ512) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford MONDEO (24C16/24C32/HCS12XHZ512) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford S-MAX (24C16/24C32/HCS12XHZ512) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)
  • Ford TRANSIT(HCS12H256/95320) - programming (characteristic datas, read/write EEPROM, read/write immobilizer datas)

    For "ECUs" module:
  • Ford EDC17C10 additional programming (key parameters: chassis, IMMO sync)

    v2-15 Ford Dashboard OBD-en

V 2.14 Opel Meriva B BCU

Available:

  •     Opel Meriva B BCU (characteristic datas reading, CARPASS reading) via OBD interface

v2-14 Opel Meriva B BCU OBD-en

V 2.13 Renault Opel dashboards

Available:

  •     Renault LAGUNA 08-> 24C16 (characteristic datas, dashboard test, bench dashboard power on, read/write EEPROM)
  •    Renault MEGANE 09-> 24C16 (characteristic datas, dashboard test, bench dashboard power on, read/write EEPROM)
  •    Renault KANGOO 07-> 93C76 (characteristic datas, read/write EEPROM)
  •    Renault KOLEOS 95160 (characteristic datas, read/write EEPROM)
  •    Renault FLUENCE 95160 (characteristic datas, read/write EEPROM)
  •    Renault MEGANE 03-04 93C56 (characteristic datas, dashboard test, bench dashboard power on, read/write EEPROM)
  •    Renault CLIO 05-07 24C04 (characteristic datas, dashboard test, bench dashboard power on, read/write EEPROM)
  •    Renault MEGANE 05-07 24C04 (characteristic datas, dashboard test, bench dashboard power on, read/write EEPROM)
  •    Renault MODUS 93CX6 (characteristic datas, dashboard test, bench dashboard power on)
  •    Renault PASSENGER-> 93C76 (characteristic datas, read/write EEPROM)
  •    Opel VIVARO 11-> 93C76 (characteristic datas, read/write EEPROM)
  •    Opel MOVANO 10-> 93C76 (characteristic datas, read/write EEPROM)

In "Multifunction" module:

  •     CAS BMW:CAS3X 9S12XET512 (2M25J) (characteristic datas, read/write EEPROM, read/write flash)

v2-13 Renault Opel dashboards-en

V 2.12 Opel Chevrolet BCU Porsche BCM

Available:

  • Opel Insignia BCU (characteristic datas) via OBDII interface
  • Opel Astra J BCU (characteristic datas) via OBDII interface
  • Opel Adam BCU (characteristic datas) via OBDII interface
  • Opel Mokka BCU (characteristic datas) via OBDII interface
  • Opel Corsa E BCU (characteristic datas) via OBDII interface
  • Opel Zafira C BCU (characteristic datas) via OBDII interface
  • Chevrolet Cruze BCU (characteristic datas) via OBDII interface
  • Chevrolet Trax BCU (characteristic datas) via OBDII interface
  • Chevrolet  Orlando BCU (characteristic datas) via OBDII interface
            (supported versions 24C16/24C32/95160)

Porsche BCM (micro maskset1N35H - 2M25J) via XEP100Prog interface

v2-12 Opel Chevrolet BCU Porsche BCM

V 2.11 Land Rover dashboards OBD Volkswagen EZS XEP100Prog

Available:

  • Land Rover Discovery Sport dashboard 93C76 (characteristic datas) via OBDII interface
  • Land Rover Evoque dashboard 93C76 (characteristic datas) via OBDII interface
  • Land Rover Freelander 2 dashboard 93C76 (characteristic datas) via OBDII interface
  • Volkswagen Crafter EZS MC9S12DT256 (characteristic datas, read/write EEPROM, read/write flash) via XEP100Prog interface

v2-11 Land Rover dashboards Wolkswagen EZS OBD XEP100Prog-en

V 2.06 Volkswagen Seat Skoda Micronas CDC32X7 boot mode

Available:

  •   Volkswagen Micronas CDC32X7 (characteristic datas, read/write EEPROM, read flash, immo datas, dashboard test) - via EDC17Prog in boot mode
  •   Seat Micronas CDC32X7 (characteristic datas, read/write EEPROM, read flash, immo datas, dashboard test) - via EDC17Prog in boot mode
  •   Skoda Micronas CDC32X7 (characteristic datas, read/write EEPROM, read flash, immo datas, dashboard test) - via EDC17Prog in boot mode

v2-06 Volkswagen Seat Skoda Micronas CDC32X7 boot-mode EDC17Prog

V 2.05 VAG MED17.1 boot mode Audi ME7.1.1 Fiat Body Computer OBD

Available:

  • VAG Group MED 17.1 UDS (characteristic datas, read/write EEPROM) - via boot mode
  • Audi ME 7.1.1 (characteristic datas) - via OBD interface
  • Fiat Punto 188 Body Computer (characteristic datas, read/write EEPROM) - via OBD interface
  • Fiat Doblò Body Computer (characteristic datas, read/write EEPROM) - via OBD interface

v2-05 VAG Audi ME7-1-1 MED17-1 Fiat Body Computer OBD-en

v 2.03 Opel ME7.6.x dashboard Mercedes SBC OBD

Available new entries for:

  •   ECUs - Opel ME7.6.H4, ME7.6.1, ME7.6.2, ME7.6.3 (ST) - ECU reset, immo sync
  •   Multifunctions - SBC Class E W211, Class SL R230, Class CLS W219 - characteristic datas, read/write eeprom
  •   Dashboards - Opel Agila A, Corsa C, Meriva, Tigra - characteristic datas, read/write eeprom

v2-03 Opel-ME-7-6-x-dashboards-Mercedes-SBC-OBD-en

V 2.02 Ford EDC17 Mini MEV17

Available new entries for ECUs:

  • Ford EDC17C10 (characteristic datas)
  • Mini MEV17.4 (characteristic datas)

v2-02 Ford-EDC17-Mini-MEV17 OBD-en

V 2.01 Renault Sirius Safir IAW SFR EMS

Available new entries for ECUs:

  •     Renault SFR200 (characteristic datas)
  •    Renault IAW6R.30 (characteristic datas)
  •     Renault SIRIUS 32/32N31/H - EMS3132 (characteristic datas, ECUs' memories)
  •     Renault SAFIR/SAFIR2 (characteristic datas)

v2-01 Siemens-Sirius32-Sagem-Safir2-MagnetiMarelli-IAW6R OBD-en

V 2.00 Bosch ME7.7.0 ME7.9.3 OBD

Available new entries for:

    ECUs (Smart ME 7.7.0 K-line ECU memories, Honda ME 7.9.3 memorie ECU memories)

v2-00 Bosch-ME7-7-0-ME7-9-3 OBD-en

V 1.99

Available new entries for:

  • ECUs
  • Dashboards (FCA, Ford, Nissan, Opel)
  • Multifunction (FCA, Opel)

MRPPad V 1.98 Bosch PSA M-ME 7.4.4 ME 7.4.5

V 1.98 Bosch PSA M-ME 7.4.4 ME 7.4.5

Available for Bosch PSA M7.4.4, ME7.4.4 and ME7.4.5 K-LINE with micros ST10F275 and SAK166 via OBD interface:

  •   Read/write EEPROM
  •   Read/write flash (of micro)
  •   Read/write characteristic datas

v1-98 Bosch-PSA-M7-4-4-ME7-4-5-ME-7-4-4 OBD-en

V 1.96 Bosch ME7.6H4 ME7.6.x

Available for Bosch ME7.6H4 and ME7.6.x with micros ST10F275 and SAK166 via OBD interface:

  •  Read/write EEPROM
  •   Read/write flash (of micro)
  •   Read/write characteristic datas

v1-96 Bosch-ME7-6H4-ME7-6-x OBD-en

V 1.95 Bosch ME 7.9.10

Available for Bosch ME7.6.3 via interfaccia OBD:

  •     Read/write EEPROM
  •     Read/write flash (of micro ST10F275)
  •     Read/write characteristic datas

v1-95 Bosch ME7-9-10 OBD-en

V 1.94 Fiat Bosch ME7.6.3

Available for Fiat Bosch ME7.6.3 via interfaccia OBD:

  • Read/write EEPROM
  • Read/write flash
  • Read/write characteristic datas

v1-94 Fiat-Bosch-ME7-6-3 OBD-en

V 1.93 BMW EWS4 Audi EZS Smart SAM Porsche BCM

Available for Audi EZS-Kessy (9S12D128) and BMW EWS4 (9S12D64) via MDP Evo XEP100Prog interface:

  • Read/write EEPROM
  • Read/write flash
  • Decode keys and immobilizer data

Available for Porsche BCM (9S12XEP100 - 5M48H) via MDP Evo XEP100Prog interface:

  • Read/write data flash
  • Read/write program flash

Available for Smart SAM (9S12D128) via MDP Evo XEP100Prog interface:

  • Read/write EEPROM
  • Read/write flash
  • Modify characteristic datas

v1-93 Audi-ELV-Porsche-BCM-BMW-EWS4-Smart-SAM en

V 1.90 35080 35160 EEPROM via XEP100Prog

Available 35080 - 35160 programming via MDP Evo XEP100Prog interface:

  • Fast read and write
  • NO need to replace EEPROM
  • In-circuit programming capability
  • Supports 35080, 35080 V6, 35080 VP, 35080 D0WQ, 35160, 35160 D0WQ, 35160 D0WT EEPROMs

v1-90 35080-35160-M35XXX-BMW-6-F-Series XEP100Prog en

V 1.89 EDC17C64 VAG Group

Available EDC17C64 for VAG Group via MDP Evo EDC17Prog interface:

  • characteristic datas modification
  • online EDC17 checksum recalculation

v1-89 Bosch-EDC17C64-VAGGroup-Volkswagen-Golf6-Golf-7 EDC17Prog-en

V 1.88 Bosch ME external flash OBD

Available additional function external flash for Bosch ME3.1, ME7.3.1, ME7.3H4:

  •     read/write external flash

v1-88 bosch-ME-external-flash OBDII-en

V 1.87 EDC17 VAG Group Opel

Available EDC17CP44 for VAG Group and EDC17C18 for Opel via MDP Evo EDC17Prog interface:

  • characteristic datas modification
  • EDC17 online checksum recalculation

v1-87 EDC17-VAGGroup-Opel-Touareg-en

V 1.86 locked 912/9S12 XEP100Prog

Available support for locked 912/9S12 via MDP Evo XEP100Prog interface:

  • read/write EEPROM
  • read/write flash

v1-86 XEP100Prog-912-9S12-locked-en

V 1.85 Delphi DCM 3.4 and 3.5

Available Delphi DCM 3.4 and 3.5 for Citroen, Ford, Peugeot, Renault:

  •     checksum recalculation

v1-85 Delphi DCM 3-4 3-5 RenaultMegane3 FordKuga Peugeot3008-en

V 1.84 IAW5SFx Fiat

Now available IAW5SF, IAW5SF3/8/9 for Fiat/Lancia and IAW5SF4 for Fiat Industrial via OBDII:

  • characteristic datas modification
  • ECU memories
  • read/write flash
  • read/write emulated EEPROM

v1-84 IAW5SFx-3-4-8-9 Fiat500 LanciaY OBDII en

V 1.83 EDC17 Fiat Opel

Now available EDC17C49 for Fiat Freemont, Alfa Romeo and EDC17C19 for Opel via interfaccia EDC17Prog and MRPPad:

  • characteristic datas modification
  • online EDC17 checksum recalculation

v1-83 EDC17C49 Fiat Freemont EDC17Prog it

V 1.82 XEP100Prog in MRPPAd

Now available XEP100 programming as maskset 1N35H and 5M48H via XEP100Prog interface and MRPPad:

  • read/write data flash
  • read/write program flash

XEP100ProgInMRPPad-en

V 1.80 Bosch number description

Now available Bosch number description, you get:

  • ECU's description
  • compatible ECUs

v1-80 BoschNumberDescription-en

V 1.81 Mercedes EDC17C43

Now available EC17C43 for Mercedes Class A W169 and Class B W245:

  • read/write EEPROM in boot mode via MDP Evo EDC17Prog interface
  • checksum online recalculation

v1-81 MercedesClasseAClasseBEDC17 EDC17Prog-en

V 1.79 EDC17 and MED17

Now available Insignia EDC17 and Giulietta MED17:

  • read/write EEPROM in boot mode via MDP Evo EDC17Prog interface
  • online checksum recalculation

v1-79 InsigniaEDC17 GiuliettaMED17 EC17Prog-en

Page 1 of 2

Contact Us

Mobile : +961-71-262226
Office: +961-1-901 956

Beirut - Lebanon

www.keyprogtools.com

Skype Support: simontouch(lebanon)
Skype Sales: Sales@KeyProgTools

Sales Email:
info@keyprogtools.com
simon.touch@hotmail.com

Support Email:
support@keyprogtools.com
