COMMANDER FOR VAG V19.0
The Commander for VAG is a Windows PC based diagnostic software for the vehicles from VAG.
With the help of this tool you can perform operations with vehicles from the VAG group,
which are in most cases unsupported from the producer diagnostic testers.
The Commander for VAG provides you also a full diagnostic capabilities for VAG-vehicles.
ALL OTHER COMMANDERS SOFTWARES CAN BE ADDED TO THE SAME AVDI
ALSO ORIGINAL SOFTWARES LIKE STAR DIAGNOSE /GT1 ....
Highlights:
- Extracting security access codes (PIN) by OBDII
- Programming keys by OBDII. Preparation of dealer's keys.
- Mileage recalibration by OBDII
- Clearing crash data DTCs by OBDII
- Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.
- Exchange speed limit of MMI-TV system
- Coding calculator - supported short/long coding
- Synchronization/Adaptation KESSY and ELV
Standard diagnostic functions:
- Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line
- For all electronic control units reading identification data
- For all electronic control units read error (DTCs)
- For all electronic control units clear error (DTCs)
- Output tests
- Control unit coding
- Scan all units
- Broadcast requests
- Measured values
- Adaptation
Special functions:
- Instrument CAN
- Mileage recalibration by OBDII - VW Golf 6, VW Multivan 2009+, VW EOS 2009+, VW Caddy 2009+, VW Scirocco, VW Polo 2009+, VW Bora 2010+, VW Jetta 2010+, VW Passat CC, VW Amarok, Skoda Octavia II 2009+, Skoda Superb 2009+, Skoda Fabia 2009+, Skoda Yeti 2009+, Seat Leon 2009+, Seat Altea 2009+, Seat Exeo 2009+, Seat Ibiza 2009+, ...
- Added support for VDO Instrument Cluster 2006+
- Read/Program memory of instrument cluster immobilizer
- Reading security access code of the IMMOBILIZER
- Reading security code (PIN) and component protection by OBDII - VW CRAFTER
- Read/Write immobilizer data in VDO dashboards with NEC microcontroller (2009+) by OBDII
- Read/Write immobilizer related data - EZS - Kessy (Q7/A6/Allroad)
- With this function you can prepare dealer key/learn dealer key
- Read/Write eeprom from EZS - Kessy (Q7/A6/Allroad) - Instrument K-Line
- With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)
- You can Read/Change odometer value
- Read PIN code
- Read/Write eeprom
- Read ROM/Flash from the Instrument cluster
- Automatic removing of "DEF error" for Audi A4 instrument cluster BOSCH RB8 - Engine Control Unit
- Read EDC17/MED17 flash memory
- Read/Write of flash memory (EDC15, EDC16 all types Read/Write Flash memory via OBDII (K and CAN). Calculation of
checksums while programming, ME7.1.1, MED9.x, ME7.5)
- Read/Write flash counters (EDC16)
- Read/Write eeprom (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
- Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, EDC17, MED9.x, Simos PPD)
- Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8, EDC16, MED17.5.1, MED 9.x, Simos PPD)
- Enable/Disable immobilizer (EDC15, ME7.x, EDC16)
- Mileage recalibration (EDC15, EDC16) - Component Protection Manager
- Component Protection Manager - adaptation of spare part (used electronic control units) and programming component protection of Audi A6/Q7/Allroad/A4/A5/Q5 - ECU adaptation by OBDII
- ECU adaptation by OBDII - EDC16, EDC17, MED17, MED9, Simos petrol, SIMOS PPD Diesel, ME7.5.20, ME 7.5.30 - BCM2 - Audi A4/A5/Q5 2007+ key programming
- The special function makes possible to learn keys for A4/A5/Q5 2007+ vehicles with the BCM2 immobilizer - Steering Lock adaptation
- The window “Steering lock adaptation” can be used for adaptation of steering lock control module to the VW Touareg/VWPhaeton/Porsche Cayenne/Bentley Continental/Audi A8. This adaptation can be by CAN TP2.0 or K-KWP2000 - TV activation ED1/ED2
- Using this special function you can change speed limit of MMI compatible vehicles to change speed where TV becomes OFF - Key programming/adaptation
- Programming keys by OBDII (VAG with 16 bytes Component Security) - VW Crafter, Audi R8, VW Golf 6, VW Multivan 2009+, VW EOS 2009+, VW Caddy 2009+, VW Scirocco, VW Polo 2009+, VW Bora 2010+, VW Jetta 2010+, Skoda Octavia II 2009+, Skoda Superb 2009+, Skoda Fabia 2009+, Skoda Yeti 2009+, Seat Leon 2009+, Seat Altea 2009+, Seat Exeo 2009+, Seat Ibiza 2009+, ... Free for owners of AN024+AN026
- UNLIMITED production of TP22/TP23/TP24/TP25 transponders from a Megamos 48. Free for all owners of AN024, ZN001
- No more precoded transponders (TA2/TA3/TA4/TA5) are used for the key-learning. Instead any Megamos 48 Crypto transponder can be used. Free for all owners of ZN001
- Extracting of the 7th byte Component Security from a working key of the car (Megamos, Hitag2). Free for all owners of AN024, ZN001
- LAMBORGHINI GALLARDO
- With this function you can learn key/transponder to the vehicle - Dump tool
- With this function you can calculate security access codes, change odometer and so on from EEPROM dump from the corresponding unit - Airbag
- Read/Write complete EEPROM of airbag control units Siemens (CAN bus - ISO15765). Audi A6/Q7/Allroad, VW Golf5..., Skoda Octavia II ..., Seat Altea ...
- With this special function you can Read/Write EEPROM memory of the airbag module
- Clear the crash data of the airbag module - Custom Read/Write
- Using this application you can read/program memory in some electronic control unit - PIN Convertor
- Service interval
- Using this function you can perform reset of the service reminder, reset of the service interval parameters or change service interval options
- Service intervals reset for the models with UDS diagnostics - Remote control adaptation
- Using this application, you can learn remote controls - Navigation
- Using this application, you can enable/disable the “Eject” button of the “Navigation” system - Cruise control system
- Using this application, you can activate/deactivate a cruise control system and change the related
steering wheel electronics( SWE) configuration if SWE unit is available - Brake pads change
- Using this application, you can “Open rear parking brake for pad change”, “Close rear parking
brake”, perform “Parking brake function test”
Prices of the special functions:
AN008 - Read/Write flash/counters ECU - free
AN011 - TV Activation - free
AN012-A - EDC16x - Odometer by OBDII - 240 euro
AN015 - FLASH Memory ECU - free
AN022 - Micronas programmer - 240 euro
AN023 - VW Crafter key programming - 240 euro
AN025 - EDC16/MED9/SIMOS PPD - PIN, Eeprom -720 euro
AN027 - Dealer key for Audi Q7,A6,Allroad(2004-2010) with existing key - 480 euro *(check the footnote )
AN028 - Odometer by CAN - 336 euro
AN029 - IMMO data immobilizer/ECU - 399 euro
AN030 - Key Adaptation (All VAG models) - 480 euro
AN031 - Dealer key preparation including Golf 6, Audi Q7, A6, Allroad -797 euro
AN032 - Read sec. access CAN - 240 euro
AN033 - Read/Write EEPROM ECU - 279 euro
AN034 - Odometer/PIN by K-line - 240 euro
AN036 - Airbag (K-line, CAN) - 399 euro **(check the footnote )
AN037 - ECU adaptation by OBDII - 768 euro
AN038 - BCM2 - Audi A4/A5/Q5 2007+ key programming - 399 euro ***(check the footnote )
AN039 - BCM2 key programming by OBDII - 1920 euro**** (check the foot note )
AN040 - Component protection manager (generation 1/2) - 1920 euro 4*
AN042 - Read/Write EDC17/MED17 Flash/EEPROM through boot-mode - 384 euro 5*
ZN001 - TAG programmer - Transponder Programmer - 480 euro
VAG Odometer package - includes (AN012-A,28,33,34) - 960 euro
VAG Dealer key package -includes AN023,25,27,29,30,31,32,33,34,39,41
+TAG programmer - 5424 euro
VAG Package 1 - includes (AN012-A,23,25,27,28,29,30,31,32,33,34+39,41
+TAG programmer) - 5856 euro
VAG Package 2 - includes ( AN012-A,23,25,27,28,29,30,31,32,33,34,36,39,40,41
TAG programmer) - 7584 euro
VAG Package 3 - includes (AN012-A,23,25,27,28,29,30,31,32,33,34,36,37,39,40,41,42
+TAG programmer) - 8448 euro

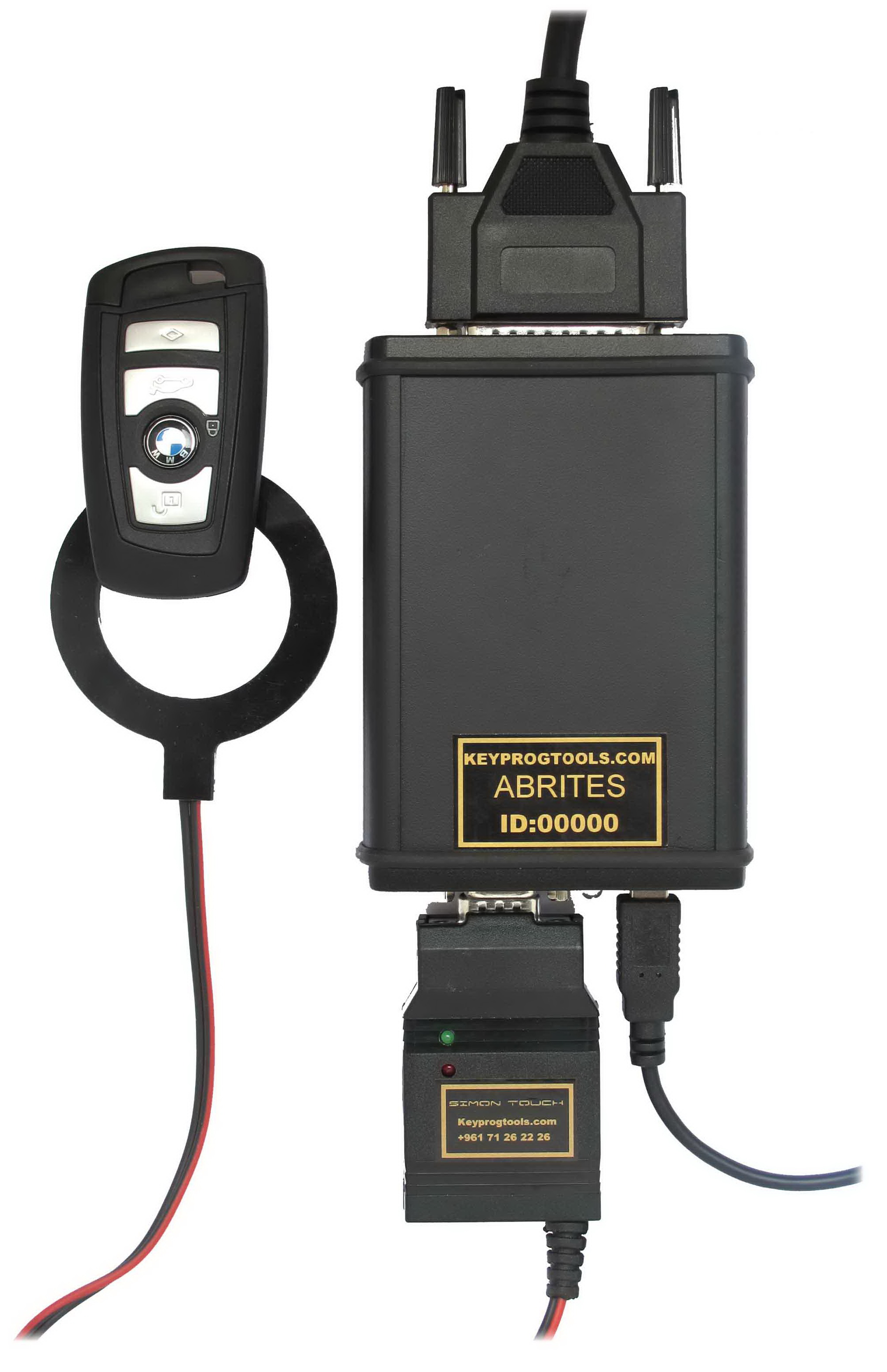

P.S : Ordering of special functions is possible only if you have our diagnostic interface AVDI
Footnote : *Need from a working key and Special Function AN030
** All customers who have the old function AN010 can buy AN036 for 315 Euro (without VAT)
*** To make a key you need to read the BCM2 dump. This is possible eitherby OBDII (if car is with 8K0907298C BCM and has working key) or with the ABPROG(ZN030) with BCM2 adapter
**** To use this feature you must have also enabled functions: AN030 + AN031. This function covers the functionality of AN038, so that new customers do not need to buy AN038. Customers who already have activated AN038 can make updates to AN039 for 1585 Euro , also they have to activate functions AN030 and AN031.
4* All customers who have the old function AN035 will receive AN040 FREE of charge
5* All customers who have the old function AN014 will receive AN041 FREE of charge
VW Touareg 2012 key leraning video

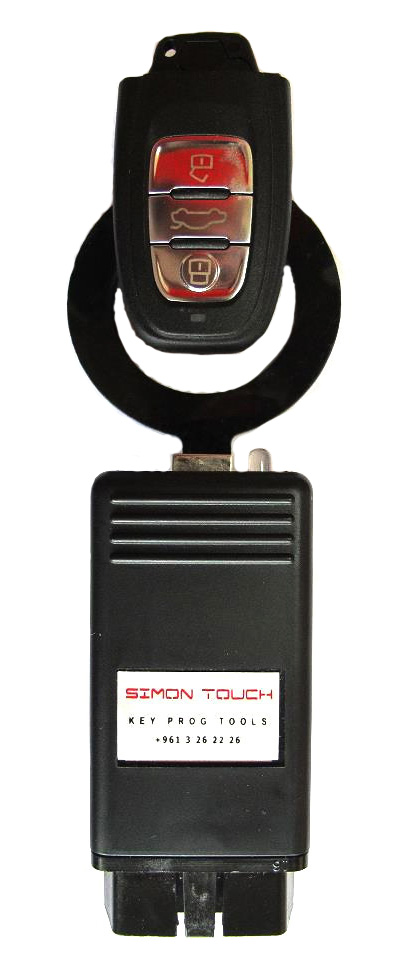

AUDI KEY PROGRAMMING DEVICE BY OBD II
Audi A4/A5/S5/RS4/S4/ Q5 2007+, Audi A6 2010+, Audi A8 2010+, Audi A7 2010+, VW Touareg 2010+
AUDI KEY LEARNING DEVICE BY OBD II
NO PC NEEDED/NO PRESSING BUTTONS JUST PLUG THE DEVICE INTO OBD AND LEARN KEY IN 25 SECONDS
- Audi A4 (B8) Typ 8K 2008+
- Audi A5 2007+
- Audi S5 (B8) 2009+
- Audi RS5 2010+
- AUDI RS4 2010-2012
- Audi RS6
- Audi Q5 2007+
- Audi A6 (C7) Typ 4K 2010+
- Audi A7 Sportback 2010+
- Audi A8 (D4) Typ 4H 2010+
- VW Touareg Typ 7P5 2010+
-Audi R8 up to 2011
The BCM2 key-learning device is dedicated to program keys for the vehicles equipped with the BCM2 module.
The key-learning device is equipped with a key programmer, which allows to pre-code the blank keys
The device has the following modes of operation:
*program 1 to 8 keys to the car
*Check whether key is blank
*Switch the alarm OFF
Our device needs 25 seconds to learn a key, also it supports BCM2 modules :
xx0907064xx, 8K0907289C
http://www.youtube.com/watch?v=PqG69CoGFSI&feature=plcp

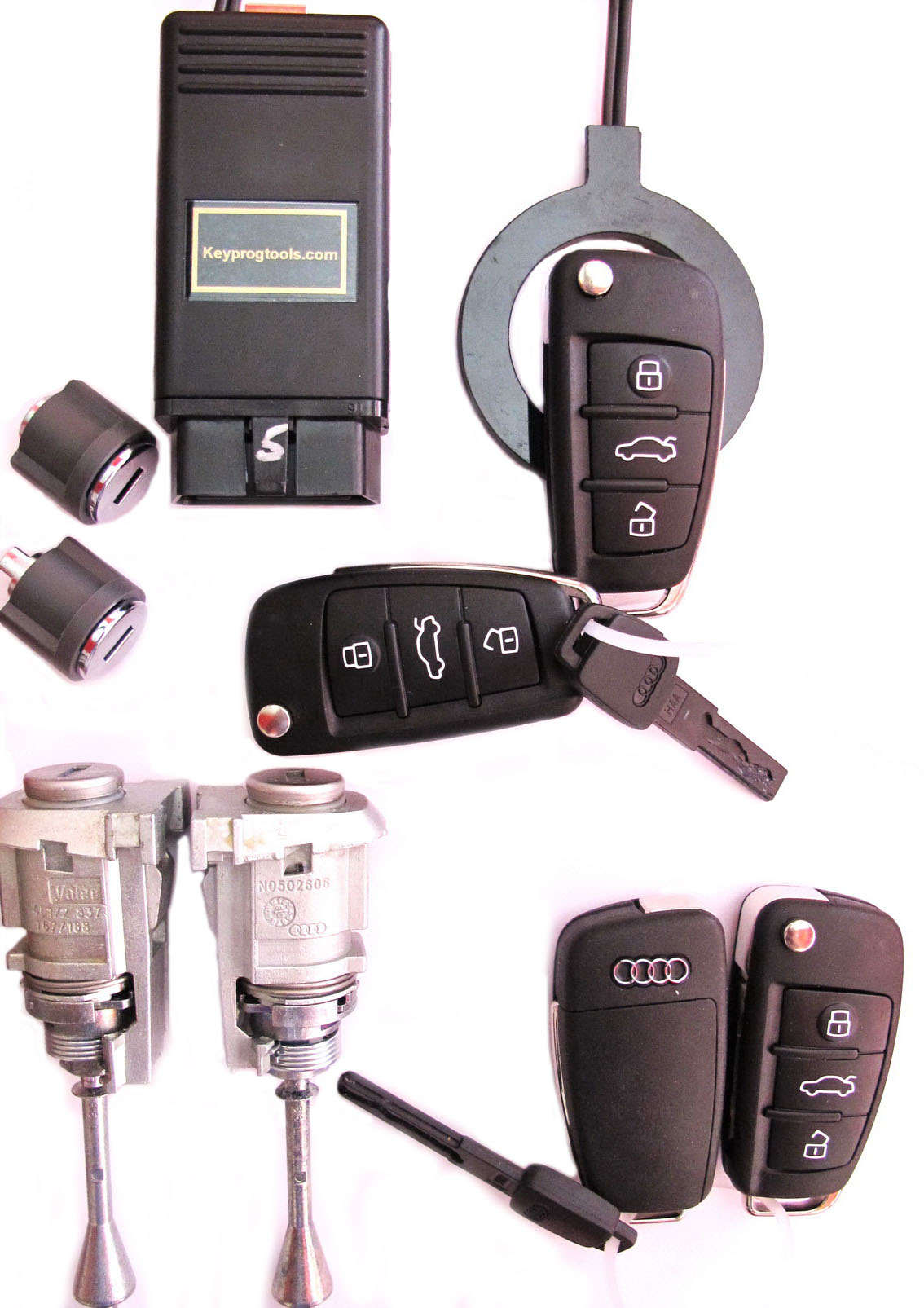

AUDI Q7/A6/RS6 /ALL ROAD DEVICE BY OBD II
Audi device can learn key to Q7/A6/ALL ROAD for EDC 16 (diesel up to 2009)
and MED 9 (petrol up to 2010)
NO PC NEEDED / NO FUSE JUMPER NEEDED/ Just plug the device into OBD
Device will deactivate the alarm and learn key / transponder in few seconds.

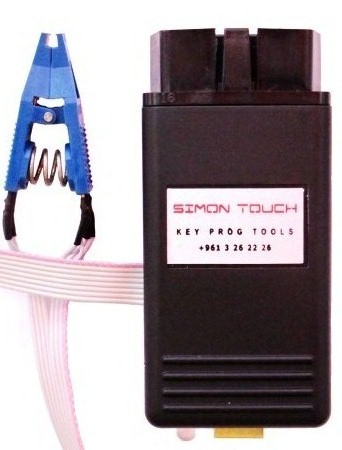

VW KEY LEARNING DEVICE FOR SIEMENS VDO CLUSTER
WITH NEC MCU + 24C32 /24C64 EEPROMS
NO PC NEEDED
Works with all SIEMENS VDO cluster with NEC MCU + 24C32 /24C64 EEPROMS
VAG K+CAN KEY DEVICE 2010
NO PC NEEDED
1. Programming keys/transponders – 1,2,3 or 4 keys
2. Emergency start of the vehicles (without matched transponder) – applicable for vehicles before year 2002
3. Device can perform bypass of the immobilizer of the vehicles equipped with engine control units from BOSCH:
- EDC16x – diesel engines - 1.9 TDI, 2.0 TDI, 2.5 TDI, 2.7 TDI, 3.0 TDI, 4.0 TDI, 4.2 TDI, 5.0 TDI
- EDC15x – diesel engines - 1.9 TDI, 2.5 TDI
- ME7.x – petrol engines - 1.8, 2.0, 2.4, 2.6, 3.0, 3.5, 4.2
All needed is to select by DIP-Switches working mode of device and to connect into OBDII socket of the car .
CLICK HERE TO CHECK THE CAR LIST

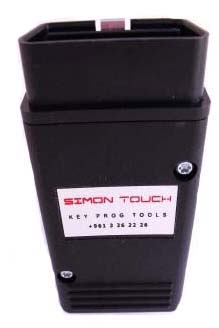

VAG BY PASS DEVICE – EDC16,EDC15,ME7
NO PC NEEDED
Device can perform bypass of the immobilizer for the vehicles equipped with engine control units from BOSCH:
- EDC16x – diesel engines - 1.9 TDI, 2.0 TDI, 2.5 TDI, 2.7 TDI, 3.0 TDI, 4.0 TDI, 4.2 TDI, 5.0 TDI
- EDC15x – diesel engines - 1.9 TDI, 2.5 TDI
- ME7.x – petrol engines - 1.8, 2.0, 2.4, 2.6, 3.0, 3.5, 4.2
click here to check the car list
VAG K2 DEVICE
NO PC NEEDED
This Device can perform easily the following functions:
1. Programming of keys/transponders – 1,2,3 or 4 keys
2. Emergency start of the vehicles (without matched transponder) – applicable for vehicles before year 2002
3. Device can perform bypass of the immobilizer for vehicles equipped with engine control units from BOSCH:
- EDC15x – diesel engines - 1.9 TDI, 2.5 TDI
- ME7.x – petrol engines - 1.8, 2.0, 2.4, 2.6, 3.0, 3.5, 4.2
All needed is to select by DIP-Switches working mode of device and to connect it into OBDII socket of the car
CLICK HERE TO CHECK THE CAR LIST
