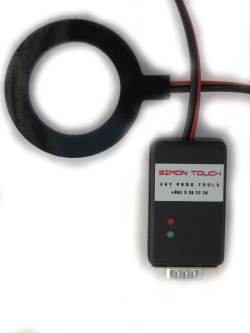

Transponder/key programmer - ZN001
This programmer works with AVDI interface. It also is compatible with our software Commander for VAG, BMW, Renault, Nissan, Mercedes, Fiat.
Supported transponders:
*Atmel TK5551 / T5
o Temic 11
o Temic 12
o Megamos 13 (fixed identifier)
o Megamos 48 (Megacrypt I)
o Megamos 8E (Megacrypt II)
o Texas TIRIS 4C
o Texas TIRIS 4D
o Philips PIT - 7930/7931/7935 (PIT)
o Philips HITAG2 – 7936, 7941, 7942, 7943, 7944, 7945, 7946, 7947, 7952, 7953, 7961
o Philips HITAG-Pro – 7937, 7938, 7939, 7952
o JMA – TPX1 (cloning of Texas 4C)
o JMA – TPX2 (cloning of Texas 4D/4E)
Next software update consists : Texas 4E.
PRICE : ZN001 - TAG programmer - 480 euro
ZN030 -ABPROG
ZN030-ABPROG - This programmer works together with AVDI interface.
With the help of this programmer you can :

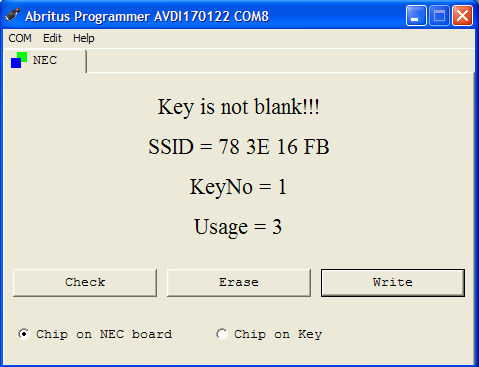

- Read the SSID of the key, Erase the NEC chip and then program it again

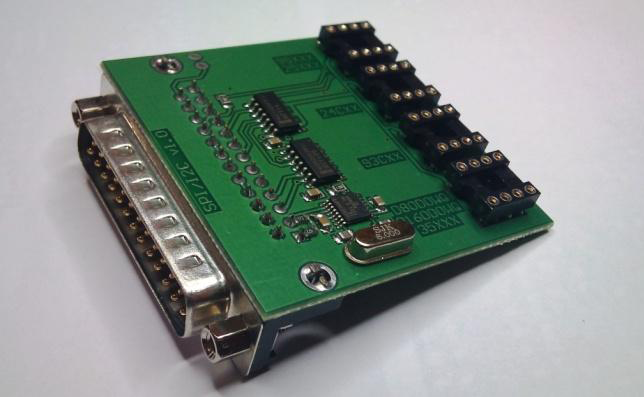

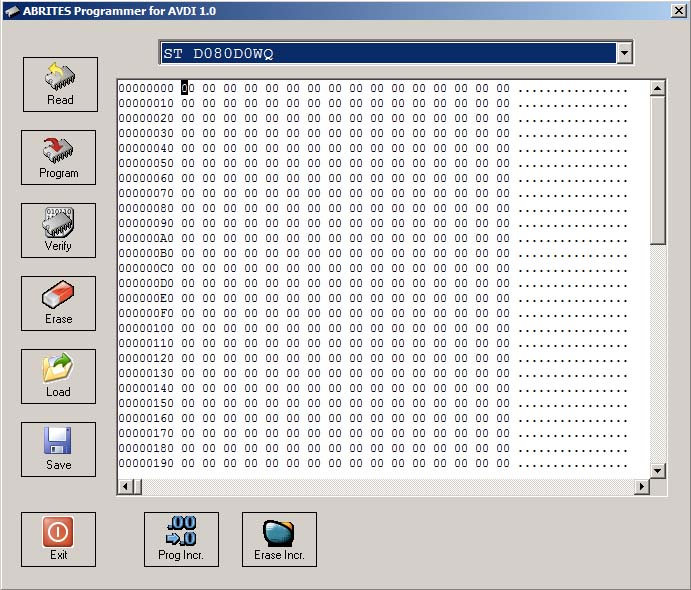

With adapter ZN031* for M35xxx/SPI/I2C Adapter together with Abrites EEPROM Programmer software allows you to erase and write SPI EEPROM memory with and without incremental registers:
- M35080VP
- M35080V6
- D080D0WQ
- D160D0WQ
- M95080
- M95160
- M95320
- M95640
- M95128

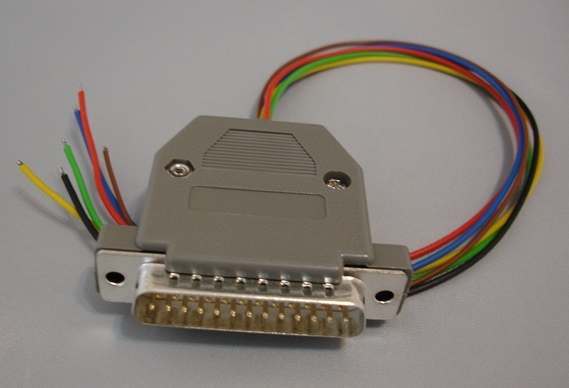

- BCM2 Adapter - With help of this adapter you can read eeprom from BCM2 module - A4/A5/Q5 2007+ if you not have a working key.
PRICE : ZN030 - ABPROG - 288 euro
Customers who already has ZN002 - NEC programmer - can only buy an adapter (ZN031) - the price for them will be 120 euro
IC / MCU programmer - AN022
This programmer currently can be used together with your Abrites Commander for VAG to read and program Micronas MCU inside of instrument clusters from Volkswagen Audi Group vehicles.
Using 3rd party software it supports:
- Read/Program EEPROM ICs - I2C, Mircrowire, SPI and other (M35080,...)
- Read/Program EEPROM/FLASH memory of Motorola MCUs from the family HC05,HC08,HC11,HC12,HCS12,9S12,MPC5xx
- Read/Program EEPROM/FLASH memory of Texas MCUs from the family TMS370,TMS374
- Read/Program EEPROM/FLASH memory of ST MCUs from the family ST7,ST10
- Read/Program EEPROM memory of National MCUs from the family CR16
- Read/Program EEPROM/FLASH Atmega MCUs
- Read/Program EEPROM/FLASH memory of ARM MCUs from the family Micronas CDC32xxG
- Programmer can skip read protection security of the following MCUs - HC05B, HC05X, HC11EA9, HC11E9, HC12,HCS12,9S12
Programmer including some additional adapters : TMS MCUs, ARM JTAG, Mororola BDM, HC05..
PRICE : AN022 - IC/MCU programmer - 300 euro
TAG KEY TOOL 5.5
With this software you can program keys/transponders for vehicles, bikes or trucks from different brands that using Megamos 13, Megamos 48 (Megacrypt I), Megamos 8E (Megacrypt II), Texas 4C, Texas 4D, Temic 11, Temic 12, T5, TK5555, Philips PIT - 7930/7931/7935 (PIT), Philips HITAG2 – 7936, 7941, 7942, 7943, 7944, 7945, 7946, 7947, 7953, 7961, Hitag-Pro 7937, 7938, 7939, 7952 , JMA TPX1 and TPX2
This software is compatiable with AN020 and ZN001 transponder programmers. Just need dump from your immobilizer, put your NEW KEY (or transponder) on the programmer and generate working key! You can also produce preprogrammed transponders for a different vehicles.
- Utility for programming of key by dump of CAS4 - latest BMW Fx series. NO OTHER TOOL WITH SIMILAR OPTION!
- Free transponder production ID67,ID68,ID70,TP22,TP23,TP24 ... and many others
- Big amount of utilities for programming of key by dump of immobilizer ( Fiat, Toyota, Ford, BMW, Audi/VW Kessy, Mercedes, Jeep, .. )
- Easy cloning of transpoders - Megamos 13, Temic 11/12, Philips ID33
- Easy cloning of Toyota/Lexus/Scion Texas TIRIS 4D transponders onto TPX2 transponder
- Easy cloning of ALL TYPES Texas 4D transponders onto TPX2 transponder - required internet connection
- Easy cloning of ALL TYPES Texas 4C transponders onto TPX1 transponder
- Programming of used BMW keys 7943/7944
PRICE :
KT001 - TagKeyTool - Utility for programming of keys by dump of immo - 600 euro
KT005 - TagKeyTool - Utility for programming of TP22, TP23, TP24, TP25 from any Megamos 48 - free
KT006 - TagKeyTool - Key Maker for Passat B6/CC Keyless - 198 euro
KT007 - TagKeyTool - Key preparation by dump of CAS4 - 4800 euro
EXISTING OWNERS WHO HAVE BOUGHT AN020/ZN001 PROGRAMMERS BEFORE 20-SEP-2010 WILL RECIEVE FREE KT001
MEGAMOS CRYPTO 48 TRANSPONDERS
TA2, TA3, TA4 and TA5 transponders are based on the Megamos 48 Crypto transponders
and can be used with the VAG Commander together with the TAG programmer (ZN001) for preparation of dealer keys from them. These transponders are suitable for the latest 2008+ models.
It is also possible to produce TP22, TP23, TP24 and TP25 transponders from the corresponding TA2, TA3, TA4 and TA5 transponders.
No changes in the immobilizer/ECU are need.
*AUDI A3 - 2003+ (TA5 is used). The produced dealer key can be programmed then with standard key-learning procedure.
*AUDI A4 - 2003-2008 (TA5 is used). A4 from 2003 to 2008 are with BOSCH RB8 Instruments which require special key-learning procedure which is available in the VAG Commander.
*VW - 2005+ - For the models till 2008 (except Passat B6) it is needed only to have a TP23 transponder.
This transponder can be produced from the TA3 transponder with the VAG Commander.
For Passat B6 and remaining VW models 2008+ it is required to have a dealer key, which also is produced from the TA3 transponder with the VAG Commander.
*SEAT - 2005+ - For the models till 2008 it is needed only to have a TP22 transponder.
This transponder can be produced from TA2 transponder with the VAG Commander.
For the remaining Seat models 2008+ it is required to have a dealer key, which also is produced from the TA2 transponder with the VAG Commander.
*SKODA - 2005+ - For the models till 2008 it is needed only to have a TP24 transponder.
This transponder can be produced from theTA4 transponder with the VAG Commander.
For the remaining Skoda models 2008+ it is required to have a dealer key, which also is produced from the TA4 transponder with the VAG Commander.
Prices:
TA2/TA3/TA4/TA5 transponders on price of 14,4 EURO
TP22/TP23/TP24/TP25 transponders on price of 16,8 EURO
MC68HC912/MC68HC9S12 Flash/EEPROM programmer
Features:
* In circuit / on board EEPROM/FLASH programming.
* Communication with PC via a serial port
* Win 32 control software including editor
* High - Speed Programming
* 80QFP, 112QFP and 144QFP programming adapters
* Easy to use Windows 98/NT/2000 software
* Onboard processor ATmega64 allow to Firmware Update to new versions
* 1x2 color LED indicates mode of operation, power supply status
* Additional items you'll need to use this tool:
1) Host: A 32 Bit x86 based or Pentium PC with a free Com1-8 port or USB port
2) Power supply: An 12 Volt / 500 mA
- For more information see HC912 Programmer User's Guide and 912/9S12 Quick MCU tutorial
* Download adaptor PCB in GERBER format and print it in ViewMate
NOTE: Stable working of programmer in In-circuit programming interface can be guaranteed if MCU clocked from stable oscillator (ceramic resonator) not capacitor! If capacitor used, please replace it with ceramic resonator. See schematic diagram for details.
Supported devices:
68HC912DC128A (3K91D)
MC68HC912DC128 (0K50E)
MC68HC912DG128 (5H55W)
MC68HC912DG128A (3K91D)
MC68HC912DG128A (0K50E)
MC68HC912D60A(2K38K)
MC68HC912B32 (4J54E)
MC68HC912B32 (9H91F)
MC68HC912D60 (0K75F)
MC68HC912D60 (0K13J)
MC68HC912D60 (4F73K)
MC9S12D64 (2L86D)
MC9S12DG128B (OL85D)
MC9S12DT128B (OL85D)
MC9S12A128B (OL85D)
MC9S12DB128B (OL85D)
MC9S12DT128B (1L85D)
MC9S12H128 (1K78X)
MC9S12 DT128B (3L40K)
MC9S12DG256C (2K79X)
MC9S12DT256C (2K79X)
MC9S12DP256C (2K79X)
MC9S12H256 (1K78X)
MC9S12DP512 (1L00M)
Recommend additional adapters:
MC68HC912 QFP-112
MC68HC912 QFP-80
MC9S12 QFP-80
MC9S12H256 QFP-144
MC9S12 QFP-112
Documents:
MC68HC912B32
MC68HC912D60
MC68HC912D60A
MC68HC912DG128
MC68HC912DG128A
MC9S12D64
MC9S12DT128
MC9S12DT256
MC9S12DP512
MC9S12H128/256
MC68HC908AZ60, MC68HC05H12 Programmer
Features:
* Easy to use Windows 98/2000/XP:
* MON08 programming adapter on board integrated.
* Improved SS pass time
* Improved built-in power supply and protection circuits
* Ultra high-speed On-Board FLASH/EEPROM programming.
* Onboard processor ATmega 16 allow to Firmware Update to new versions
* 3 color LEDs indicates mode of operation, power supply status
* Additional items you'll need to use this tool:
1) Host: A 32 Bit x86 based or Pentium PC with a free Com1-8 port or USB port
2) Power supply: An 12 Volt / 500 mA
For more information see MC68HC908AZ60 Programmer Serial version User's Guide
* Download adaptor PCB in GERBER format and print it in ViewMate
Supported devices:
MC68HC908AZ60 (2J74Y)
MC68HC908AZ60 (4J74Y)
MC68HC908AZ60A (3K85K)
MC68HC908AS60 (3J74Y)
MC68HC908AS60A (1L87J)
MC68HC908AB32 (3K56G)
MC68HC08AZ60 (1J35D)
MC68HC08AZ32 (0J66D)
MC68HC08AZ32 (1H56A)
MC68HC08AS20 (0H94K)
MC68HC08AZ32A (1L52H)
MC68HC08AB16A (0L72A)
MC68HC05H12 (0H57A)
Recommend additional adapters:
MC68HC908AZ60 QFP-100
MC68HC908AZ60 QFP-64
MC68HC908AZ60 PLCC-52
MC68HC705B16/32 PROGRAMMER
Features:
* Easy to use DOS, Windows 95/98/NT/2000 software
* Onboard processor
* Device selection by 4 jumpers
* 2 color LEDs indicates mode of operation, security condition (check option available without PC)
* LPT port self-check function on a board
* 52PLCC PGA socket on a board and additional 2 adaptors for 64QFP device in complete
* Additional items you'll need to use this tool:
1) Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
2) Power supply: An 12 Volt / 100 mA
For more information see ETL Uniprog User's Guide
* Download adaptor PCB in GERBER format and print it in ViewMate
NOTE: If jumper selected incorrect - No any risk to lose data. Storage EEPROM contents guaranteed !!!
IMPORTANT NOTE: On the D53J mask set (MC68HC05X32), DIV10 is forced in bootstrap mode. So 20 MHz Crystal must be used with this device.
IMPORTANT NOTE for MC68HC705X32 (0D69J):
MC68HC705X32 (0D69J) Operation Guide
Supported devices:
MC68HC705B16
MC68HC705B32
MC68HC705X16
MC68HC705X32
MC68HC05B68
MC68HC05B616
MC68HC05B632
MC68HC05X16
MC68HC05X32
Recommend additional adapters:
MC68HC705B16 QFP-64

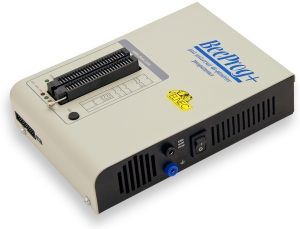

UNIVERSAL PROGRAMMER EL NEC B+

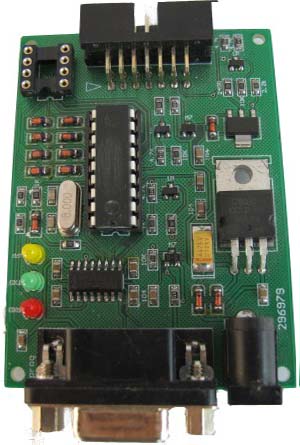

XPROG PROGRAMMER (WIN98)
You can use this programmer to renew ESL 203/211/209/208/210
Read / Write and fix the old smart key
We provide ESL data which can works on any ESL (steering lock) without using the star diagnose .
As we can provide information on how to fix the smart big key . (2mhz/4mhz)

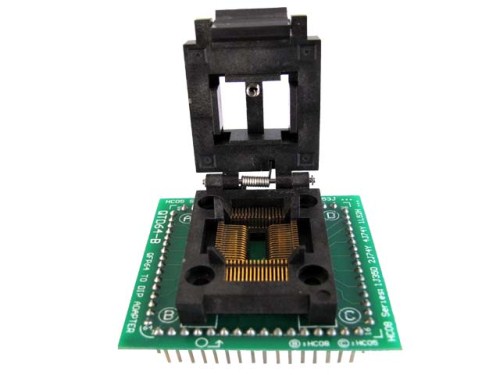

QFP64 UNIVERSAL SOCKET
ROSFAR PROGRAMMER
R260S Programmer can program the Motorola/Freescale 68HC912/MC912/MC9S12
microcontroller families, including the latest MC9S12X XGATE-based processor family. The
system works as a in-circuit programmer, no needs to remove the chip from the target board nor
lifting any pin. It connects to the board via serial connection by using only few wires and it works
with secured chips, too. No matter if it is secured or not!
IMPORTANT!!! This interface can program any board that uses a HC12 , 9S12 or 9S12X series Motorola/Freescale secured and non secured microcontroller
!!!!!!! THIS IS THE ORIGINAL and MOST RELIABLE ONE !!!!!!!!
Be aware that some competitors are providing copies of this tool without the automatic learning algorithm making them really unsafe. Use them at your own risk!
List of all car models covered for in-circuit programming by the programmer
• BMW 1,3,5,6 Series CAS2 White (9S12)
• BMW 1,3,5,6,X5 Series CAS3 Black (9S12)
• BMW 1,3,5,6,X5 Series CAS3 Black ( 9S12X )
• BMW 7 Series CAS 2002 (HC12)
• BMW 7 Series CAS 2005 facelift (9S12)
• BMW X3/X5 EWS4 (9S12) incl. 2007 version !!!New!!! (editing of EWS4's 9S12D64 now works)
• Ford Mustang 2007 (9S12) !!!New!!!
• Landrover Freelander 2002 (HC12)
• Landrover Freelander 2004 (HC12)
• Mercedes A-Class 2004 Key Module (9S12)
• Mercedes C/CLK C209 ZGW (9S12) **
• Mercedes E/C W211 Key Module (HC12) **
• Mercedes E/C/CLK/SLK W211 Key Module (9S12) **
• Mercedes ML/R W164 Key Module (9S12) **
• Mercedes S/SL EZS R230 (9S12) **
• Mercedes Sprinter 2007 EZS (9S12) !!!New!!!
• Mini One/Cooper Dashboard (HC12)
• Mini One/Cooper Dashboard NAVI (HC12)
• Mini One/Cooper EWS4 (9S12)
• Mini One/Cooper CAS3 Black ( 9S12X )
• Volkswagen Crafter 2007 EZS (9S12) !!!New!!!
** - NOT for new NEC based modules (Amazons, Havana, Palermo, Spanish ).
