WELCOME TO SIMON TOUCH

Since 1997, Simon Touch has been a leader in the automotive industry with a full engineering team providing solutions and software's for different security systems, and diagnostics problems.

MORE

MB NEC ProductCheck the latest Mercedes MB Nec Products

  • 1
  • 2
  • 3
  • 4
  • 5

OEM VOLVO VIDA

AVDI  USAGE FOR OEM DIAGNOSTIC SOFTWARE - VOLVO  VIDA


 AVDI can replace fully the expensive DICE interface. AVDI is recognized like VOLVO-DICE diagnostic interface so it is available all diagnostic options of VOLVO VIDA interface. Remaining passthru interfaces usually are detected like generic passthru interface from VIDA software so available is only ECU reprogramming option. While with AVDI you have full options!!!

KEYPROGTOOLS VOLVO

KEYPROGTOOLS VOLVO SOFTWARE 2

KEYPROGTOOLS VOLVO  SOFTWARE 3

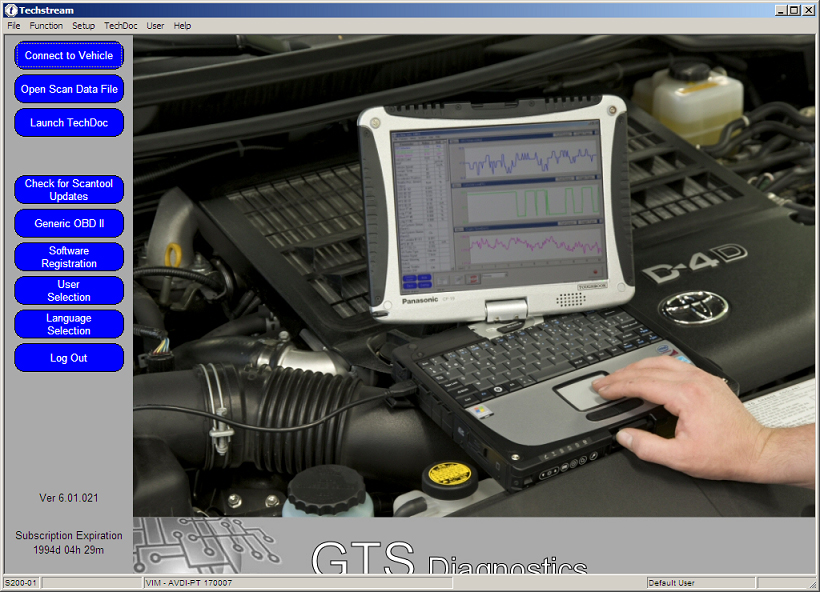

Toyota/Lexus/Scion TECHSTREAM

AVDI USAGE WITH TOYOTA / LEXUS  / SCION TECHSTREAM

The big difference between remaining compatible interfaces with techstream is that AVDI provide specific adjustments with the OEM software so crashes while diagnostic sessions with some units (for example SRS unit over K-line) are avoided. No other compatible interface on the market that provides similar matching to the OEM software techstream! is your perfect choice for dealer level diagnostic of Toyota, Lexus and Scion vehicles. AVDI can replace fully the expensive Techstream interface.


keyprogtools techstream



AVDI

                AVDI

                           avdi

AVDI is last generation diagnostic interface for vehicles and trucks produced from our company.

Currently AVDI is distributed with following diagnostic software:

  •  Commander for VAG –VW – AUDI –SEAT – SKODA
  • Commander for Porsche
  • Commander for Mercedes/Smart/Maybach
  • Commander for OPEL/VAUXHALL
  •  Commander for Toyota/Lexus/Scion
  • Commander for BMW
  • Commander for Renault
  • Commander for Nissan
  • Commander for Peugeot and Citroen
  • Commander for Fiat, Alfa, Lancia
  • Commander for Ford
  • Commander for Chrysler/Jeep/Dodge
  • Commander for DAF
  • Commander for Mitsubishi
  • Commander for Suzuki
  • Commander for HYUNDAI  – KIA
  • J2534 PassThru driver that allows users to use 3rd party diagnostic software

 Under development is software for diagnostic of Rover, Bikes, MAN, Scania.

Interface is compatible with some of our other tools “on the way” like:

  • ABRITES Locksmith Tool
  • ABRITES Mileage Tool
  • ABRITES Tuning Tool
  • ABRITES SRS Too

 Technical specification:

    • K-line ISO 9141 (100 mA) multiplexed to 24 different pins of the diagnostic connector
    • ISO14230 compliant
    • SAE J1850 VPW,PWM compliant (needed additional adapter)
    • Single wire CAN bus multiplexed to different pins of diagnostic connector
    • Dual wire low speed CAN bus multiplexed to different pins of diagnostic connector
    • Dual wire high speed CAN bus multiplexed to different pins of diagnostic connector
    • CAN bus GMLAN, ISO14229, ISO15765, J1939, ISO22901 compliant
    • Analog Input
    • Bluetooth connection (* optional)
    • USB interface to the PC
    • Supply voltage 8..30V DC
    • OBDII cable
Updatable firmware

PRICE  : 700 EURO including passthru software for free



Mercedes 7 G

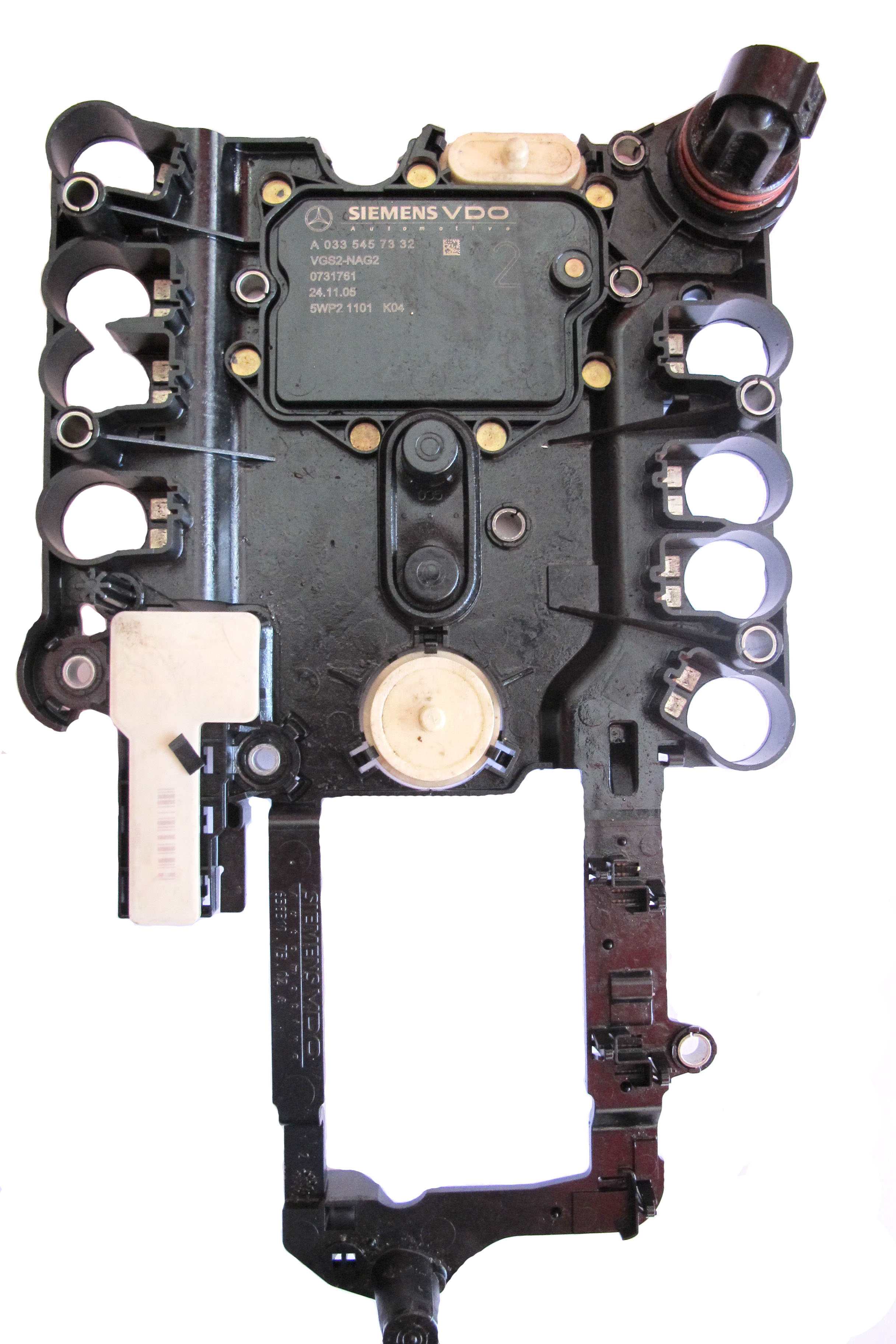

722.9 Electronic Transmission Control Unit and Intelligent Servo Module Renew


Owners of this special function can renew 722.9 Electronic Transmission Control Unit and Intelligent Servo Modules.

This function allows to reuse these control units in other cars.

click here to get the user manual

you can request the latest version for data base for 7G  by email  at [email protected]

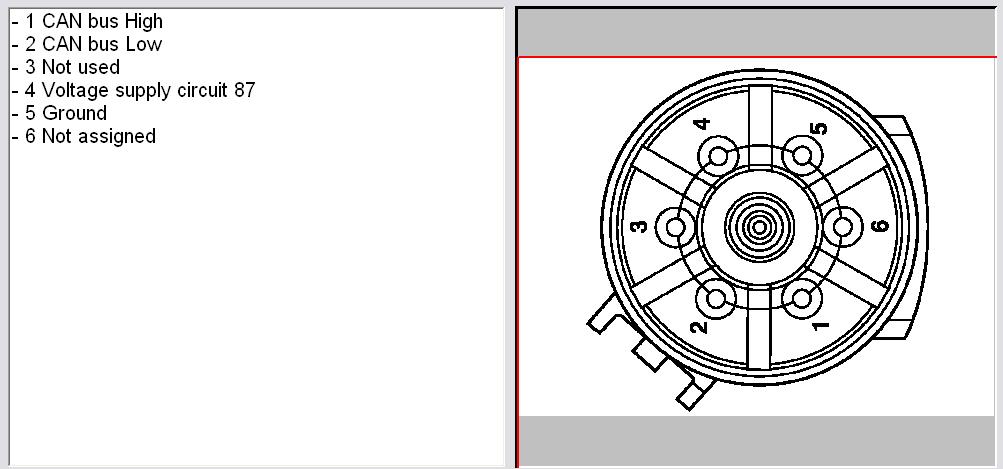

7G pinout

IMG 3178
